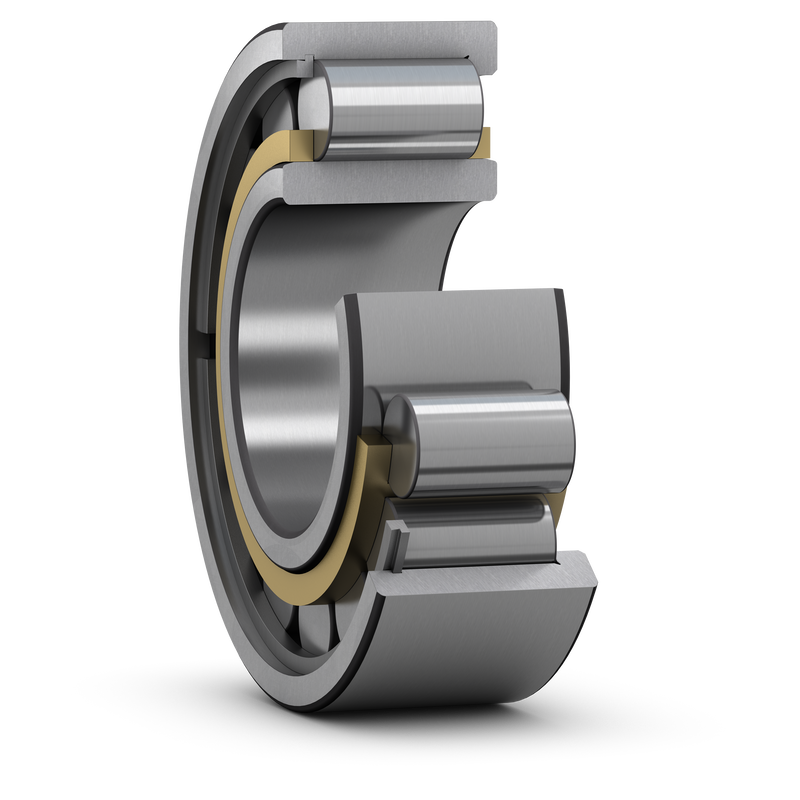

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| SKF performance class |
SKF Explorer
|
| d |
220 mm
|
Bore diameter |
|---|---|---|
| D |
400 mm
|
Outside diameter |
| B |
108 mm
|
Width |
| D1 |
≈ 350 mm
|
Shoulder diameter outer ring |
| F |
259 mm
|
Raceway diameter inner ring |
| s |
max. 2.5 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 4 mm
|
Chamfer dimension |
| da |
min. 237 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 254 mm
|
Abutment diameter shaft |
| db |
min. 263 mm
|
Abutment diameter shaft |
| Da |
min. 359 mm
|
Abutment diameter housing |
| Da |
max. 383 mm
|
Abutment diameter housing |
| ra |
max. 3 mm
|
Fillet radius |
| ra |
max. 3 mm
|
Fillet radius |
| Basic dynamic load rating | C |
2 000 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 600 kN
|
| Fatigue load limit | Pu |
240 kN
|
| Reference speed |
1 700 r/min
|
|
| Limiting speed |
1 900 r/min
|
|
| Calculation factor | kr |
0.16
|
| Mass bearing |
58.8 kg
|
