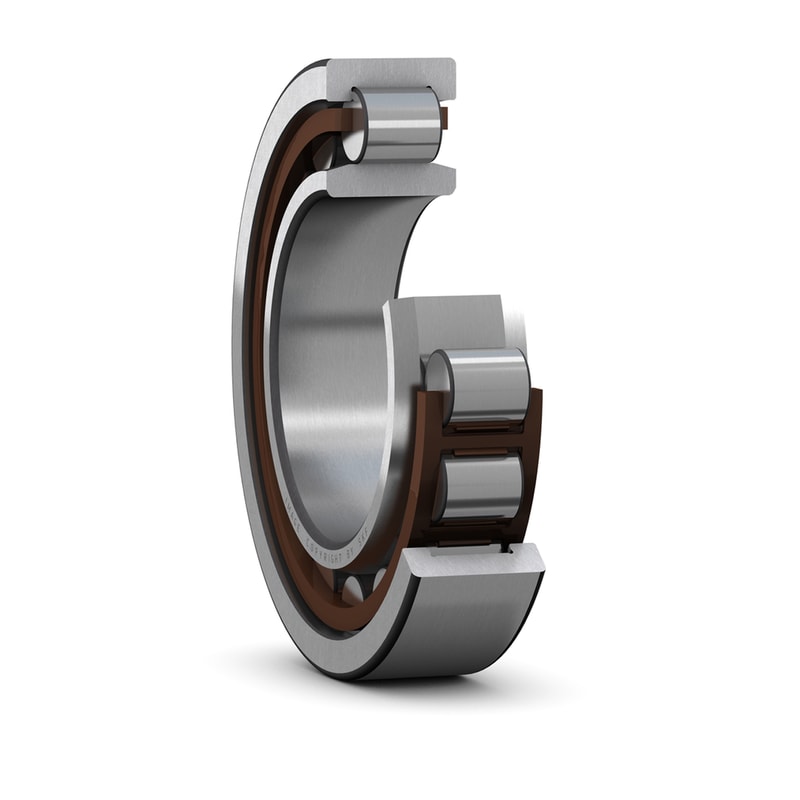

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| SKF performance class |
SKF Explorer
|
| d |
105 mm
|
Bore diameter |
|---|---|---|
| D |
225 mm
|
Outside diameter |
| B |
49 mm
|
Width |
| D1 |
≈ 189 mm
|
Shoulder diameter of outer ring |
| F |
133 mm
|
Raceway diameter of inner ring |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| r3,4 |
min. 3 mm
|
Chamfer dimension |
| s |
max. 3.4 mm
|
Permissible axial displacement |
| da |
min. 119 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max. 129 mm
|
Diameter of spacer sleeve |
| db |
min. 136 mm
|
Diameter of shaft abutment |
| Da |
max. 209.4 mm
|
Diameter of housing abutment |
| ra |
max. 2.5 mm
|
Radius of fillet |
| rb |
max. 2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
500 kN
|
|---|---|---|
| Basic static load rating | C0 |
500 kN
|
| Fatigue load limit | Pu |
57 kN
|
| Reference speed |
3 200 r/min
|
|
| Limiting speed |
3 800 r/min
|
|
| Minimum load factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
| Mass |
8.5 kg
|
