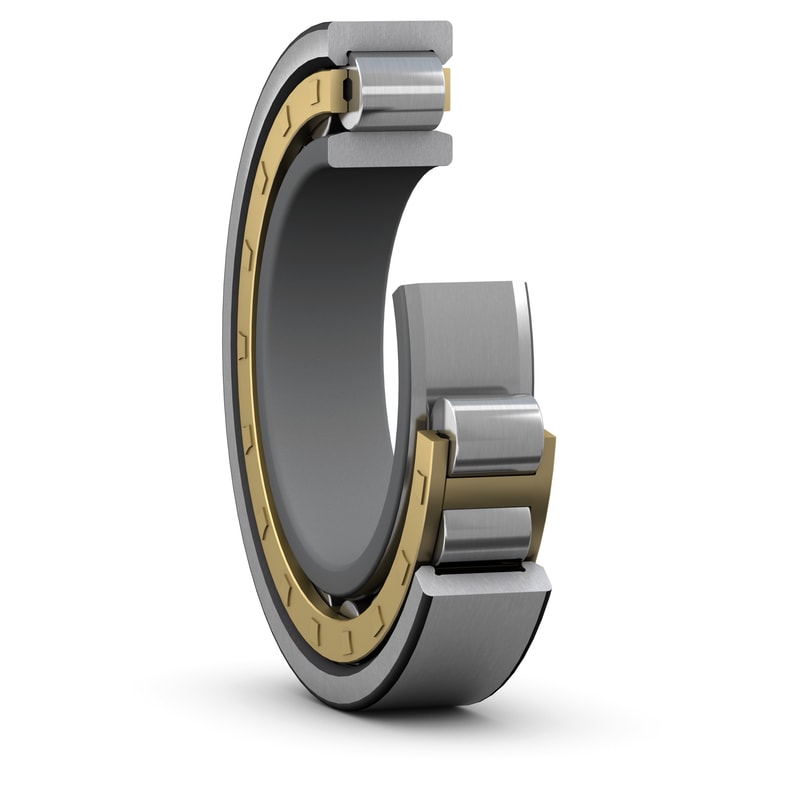

INSOCOAT single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. The applied electrically insulating coating on the outside surfaces of the outer or inner ring prevents electric current from passing through the bearings. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| d |
140 mm
|
Bore diameter |
|---|---|---|
| D |
250 mm
|
Outside diameter |
| B |
42 mm
|
Width |
| D1 |
≈ 217 mm
|
Shoulder diameter outer ring |
| F |
169 mm
|
Raceway diameter inner ring |
| s |
max. 2.5 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| r3,4 |
min. 3 mm
|
Chamfer dimension |
| da |
min. 154 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 160 mm
|
Abutment diameter shaft |
| db |
min. 172 mm
|
Abutment diameter shaft |
| Da |
max. 236 mm
|
Abutment diameter housing |
| ra |
max. 2.5 mm
|
Fillet radius |
| rb |
max. 2.5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
450 kN
|
|---|---|---|
| Basic static load rating | C0 |
510 kN
|
| Fatigue load limit | Pu |
57 kN
|
| Reference speed |
2 800 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Calculation factor | kr |
0.15
|
| Mass bearing |
9 kg
|
