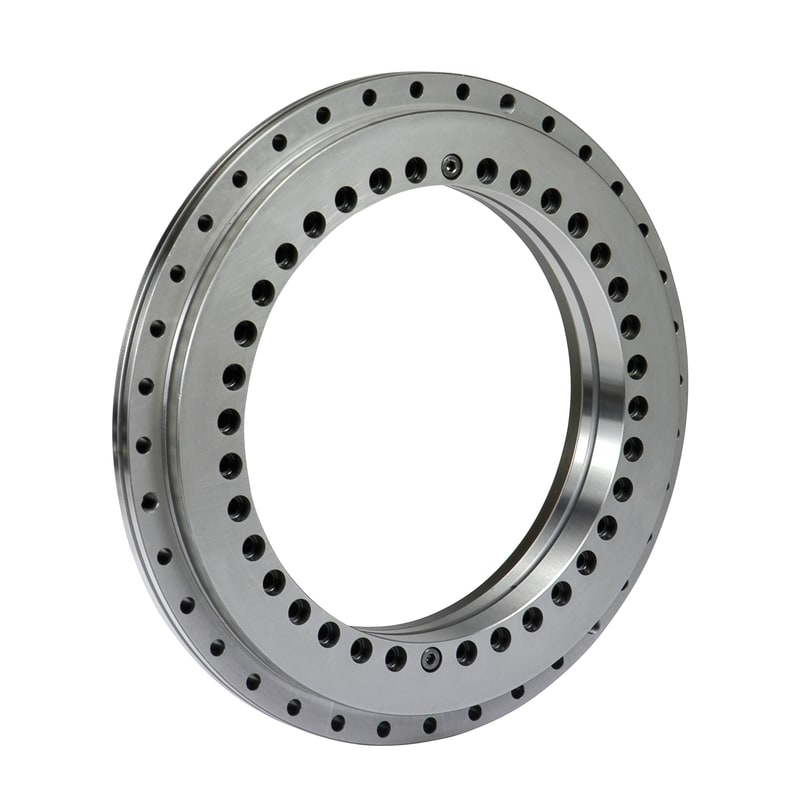

Axial-radial cylindrical super-precision roller bearings can accommodate radial loads, axial loads in both directions and moment loads, whether acting singly, or simultaneously, in any combination. With high running accuracy, high load capacity and rigidity, SKF super-precision axial radial cylindrical roller bearings are ideal for rotary tables, indexing heads, and multi spindle heads. The bearing minimizes noise, vibration and heat generation.
| d |
150 mm
|
Bore diameter |
|---|---|---|
| D |
240 mm
|
Outside diameter |
| H |
40 mm
|
Height |
| d1 |
214 mm
|
Shoulder diameter inner ring – large shoulder |
| C |
12 mm
|
Outer ring (housing washer) width |
| H1 |
26 mm
|
Distance |
| J |
165 mm
|
Inner ring (shaft/locating washer) hole pitch circle diameter |
| J1 |
225 mm
|
Outer ring (housing washer) hole pitch circle diameter |
| N |
7 mm
|
Inner ring (shaft/locating washer) through hole |
| N1 |
11 mm
|
Inner ring (shaft washer) sinkhole |
| N2 |
7 mm
|
Outer ring (housing washer) through hole |
| a |
6.2 mm
|
Inner ring (shaft washer) sinkhole depth |
| r1 |
min. 0.6 mm
|
Outer ring (housing washer) chamfer dimension |
| r2 |
min. 0.3 mm
|
Chamfer dimension |
| Basic dynamic load rating – radial direction | C |
67.1 kN
|
|---|---|---|
| Basic static load rating – radial direction | C0 |
160 kN
|
| Basic dynamic load rating – axial direction | C |
75 kN
|
| Basic static load rating – axial direction | C0 |
490 kN
|
| Attainable speed for grease lubrication |
210 r/min
|
|
| Attainable speed for oil-air lubrication |
420 r/min
|
|
| Axial preload |
2.3 kN
|
|
| Axial unloading force |
4.9 kN
|
|
| Frictional moment | CRL |
12 N·m
|
| Axial stiffness for preload A (sets of two brgs back-to-back or face-to-face) |
9 200 000 kN/µm
|
|
| Axial stiffness for preload B (sets of two brgs back-to-back or face-to-face) |
5 500 000 kN/µm
|
|
| Moment stiffness |
36 kN·m/mrad
|
| Mass bearing |
5.6 kg
|
| Guideline rotary table diameter |
350 mm
|
| Size |
M6
|
|
| Number of bolts |
2
|
|
| Angle between bolts |
180 °
|
| Size | G |
M8
|
|---|---|---|
| Number of threads |
3
|
|
| Angle between threads |
120 °
|
| Bolt size |
M6
|
|
| Pitch | α |
10 °
|
| Number of bolts |
34
|
|
| Number of bolts omitted at retaining bolts position |
2, 180° apart
|
|
| Tightening torque (Bolt grade 10.9) |
14 N·m
|
| Bolt size |
M6
|
|
| Pitch | α |
10 °
|
| Number of bolts |
33
|
|
| Number of bolts omitted at removal thread position |
3, 120° apart
|
