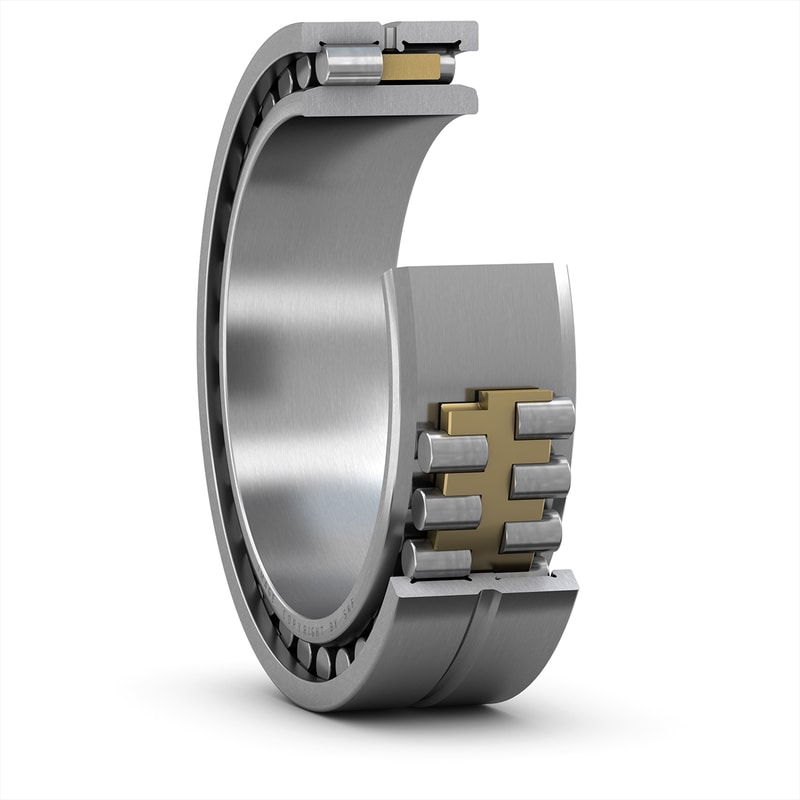

Super-precision double row cylindrical roller bearings in the NNU 49 series are designed to accommodate heavy radial loads and high speeds, while providing a high degree of stiffness. Having three flanges on the outer ring and no flanges on the inner ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit. The tapered bore enables accurate adjustment of clearance or preload during mounting.
| Bore type |
Tapered 1:12
|
| d |
600 mm
|
Bore diameter |
|---|---|---|
| D |
800 mm
|
Outside diameter |
| B |
200 mm
|
Width |
| D1 |
733.2 mm
|
Shoulder diameter outer ring (NNU design) |
| F |
666 mm
|
Raceway diameter inner ring (NNU design) |
| b |
22.3 mm
|
Width annular lubrication groove at outer ring |
| K |
12 mm
|
Diameter lubrication hole (outer ring) |
| r1,2 |
min. 5 mm
|
Chamfer dimension outer ring |
| r3,4 |
min. 2.5 mm
|
Chamfer dimension inner ring (bearing with tapered bore) |
| s |
max. 5.5 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other (all) |
| da |
min. 648 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 662 mm
|
Abutment diameter shaft (NNU design) |
| Da |
max. 782 mm
|
Abutment diameter housing |
| ra |
max. 4 mm
|
Fillet radius |
| Basic dynamic load rating | C |
3 580 kN
|
|---|---|---|
| Basic static load rating | C0 |
10 200 kN
|
| Fatigue load limit | Pu |
800 kN
|
| Attainable speed for grease lubrication |
800 r/min
|
|
| Attainable speed for oil-air lubrication |
670 r/min
|
| Mass bearing |
280 kg
|
