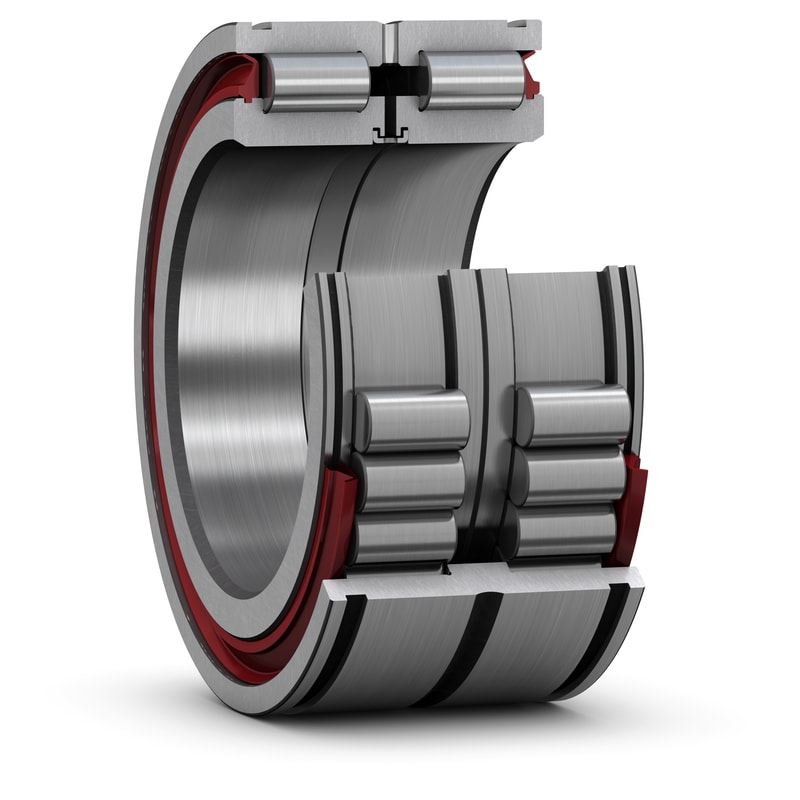

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.
| d |
220 mm
|
Bore diameter |
|---|---|---|
| D |
340 mm
|
Outside diameter |
| B |
160 mm
|
Width |
| C |
159 mm
|
Outer ring width (sealed bearing) |
| d1 |
≈ 263.5 mm
|
Shoulder diameter inner ring |
| D3 |
334 mm
|
Snap ring groove diameter at outer ring |
| C1 |
138.2 mm
|
Distance between two snap ring grooves of the outer ring outside surface |
|
+ 0.2 mm
|
Tolerance for distance C1 | |
| C2 |
10.4 mm
|
Distance outer ring side face – snap ring groove (sealed bearing) |
| b |
6.3 mm
|
Width snap ring groove outer ring |
| b1 |
11 mm
|
Width annular lubrication groove outer ring |
| K |
6 mm
|
Diameter lubrication hole (outer ring) |
| r |
min. 2 mm
|
Chamfer dimension (sealed bearing) |
| r3,4 |
min. 1 mm
|
Chamfer dimension |
| da |
min. 227 mm
|
Abutment diameter shaft |
|---|---|---|
| das |
256 mm
|
Abutment diameter shaft |
| Ca1 |
130 mm
|
Abutment width applying for SW snap rings (sealed brg.) |
|
– 0.2 mm
|
Tolerance for abutment Ca (SW snap rings) | |
| Ca2 |
126 mm
|
Abutment width applying for DIN 471 snap rings (sealed brg.) |
|
– 0.2 mm
|
Tolerance for abutment Ca (DIN 471 snap rings) | |
| ra |
max. 2 mm
|
Fillet radius |
| Basic dynamic load rating | C |
1 610 kN
|
|---|---|---|
| Basic static load rating | C0 |
3 100 kN
|
| Fatigue load limit | Pu |
315 kN
|
| Limiting speed |
360 r/min
|
|
| Minimum load factor | kr |
0.4
|
| Mass bearing |
53.8 kg
|
