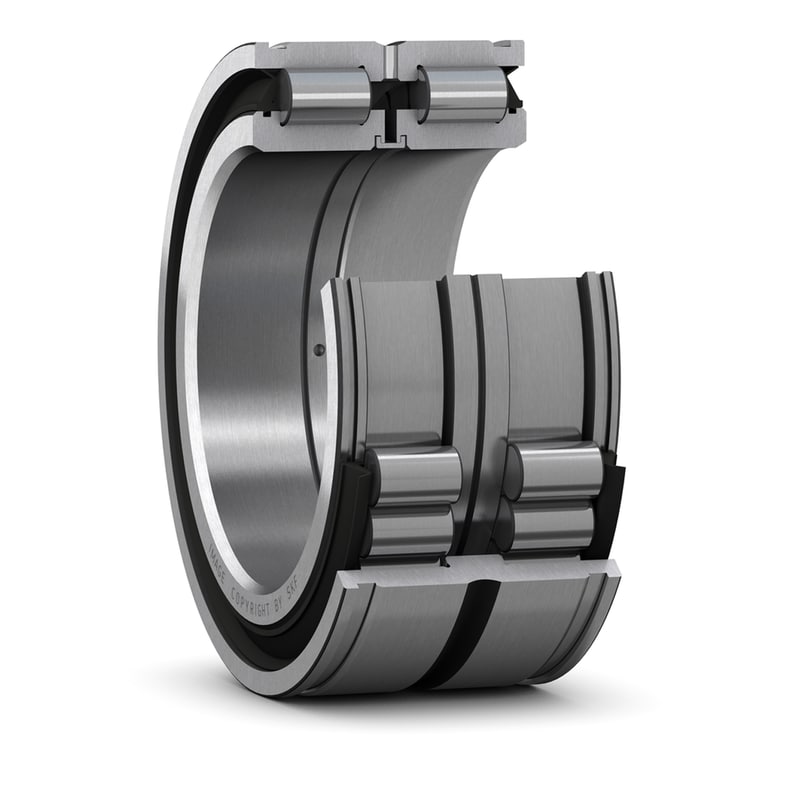

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
200 mm
|
Outside diameter |
| B |
95 mm
|
Width |
| C |
94 mm
|
Outer ring width (sealed bearing) |
| d1 |
≈ 155 mm
|
Shoulder diameter inner ring |
| D3 |
196 mm
|
Snap ring groove diameter at outer ring |
| E |
183.5 mm
|
Raceway diameter outer ring |
| C1 |
83.2 mm
|
Distance between two snap ring grooves of the outer ring outside surface |
|
+ 0.2 mm
|
Tolerance for distance C1 | |
| C2 |
5.4 mm
|
Distance outer ring side face – snap ring groove (sealed bearing) |
| b |
4.2 mm
|
Width snap ring groove outer ring |
| b1 |
7 mm
|
Width annular lubrication groove outer ring |
| K |
4 mm
|
Diameter lubrication hole (outer ring) |
| r |
min. 1.8 mm
|
Chamfer dimension (sealed bearing) |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| da |
min. 137 mm
|
Abutment diameter shaft |
|---|---|---|
| das |
150 mm
|
Abutment diameter shaft |
| Ca1 |
77 mm
|
Abutment width applying for SW snap rings (sealed brg.) |
|
– 0.2 mm
|
Tolerance for abutment Ca (SW snap rings) | |
| Ca2 |
75 mm
|
Abutment width applying for DIN 471 snap rings (sealed brg.) |
|
– 0.2 mm
|
Tolerance for abutment Ca (DIN 471 snap rings) | |
| ra |
max. 1.5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
616 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 040 kN
|
| Fatigue load limit | Pu |
120 kN
|
| Limiting speed |
630 r/min
|
|
| Minimum load factor | kr |
0.4
|
| Mass bearing |
10.5 kg
|
