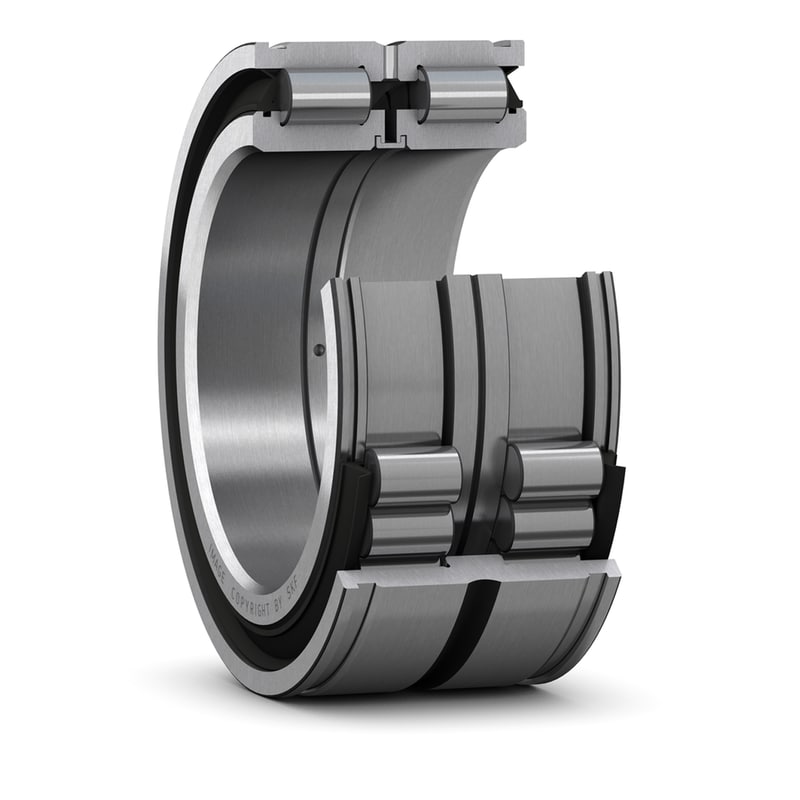

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.
| d |
30 mm
|
Bore diameter |
|---|---|---|
| D |
55 mm
|
Outside diameter |
| B |
34 mm
|
Width |
| C |
33 mm
|
Outer ring width (sealed bearing) |
| d1 |
≈ 40.6 mm
|
Shoulder diameter inner ring |
| D3 |
53 mm
|
Snap ring groove diameter at outer ring |
| C1 |
28.2 mm
|
Distance between two snap ring grooves of the outer ring outside surface |
|
+ 0.2 mm
|
Tolerance for distance C1 | |
| C2 |
2.4 mm
|
Distance outer ring side face – snap ring groove (sealed bearing) |
| b |
2.1 mm
|
Width snap ring groove outer ring |
| b1 |
7.5 mm
|
Width annular lubrication groove outer ring |
| K |
4.5 mm
|
Diameter lubrication hole (outer ring) |
| r |
min. 0.5 mm
|
Chamfer dimension (sealed bearing) |
| r3,4 |
min. 0.3 mm
|
Chamfer dimension |
| da |
min. 34 mm
|
Abutment diameter shaft |
|---|---|---|
| das |
38.7 mm
|
Abutment diameter shaft |
| Ca1 |
25 mm
|
Abutment width applying for SW snap rings (sealed brg.) |
|
– 0.2 mm
|
Tolerance for abutment Ca (SW snap rings) | |
| Ca2 |
24 mm
|
Abutment width applying for DIN 471 snap rings (sealed brg.) |
|
– 0.2 mm
|
Tolerance for abutment Ca (DIN 471 snap rings) | |
| ra |
max. 0.3 mm
|
Fillet radius |
| Basic dynamic load rating | C |
57.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
75 kN
|
| Fatigue load limit | Pu |
7.8 kN
|
| Limiting speed |
2 600 r/min
|
|
| Minimum load factor | kr |
0.4
|
| Mass bearing |
0.37 kg
|
