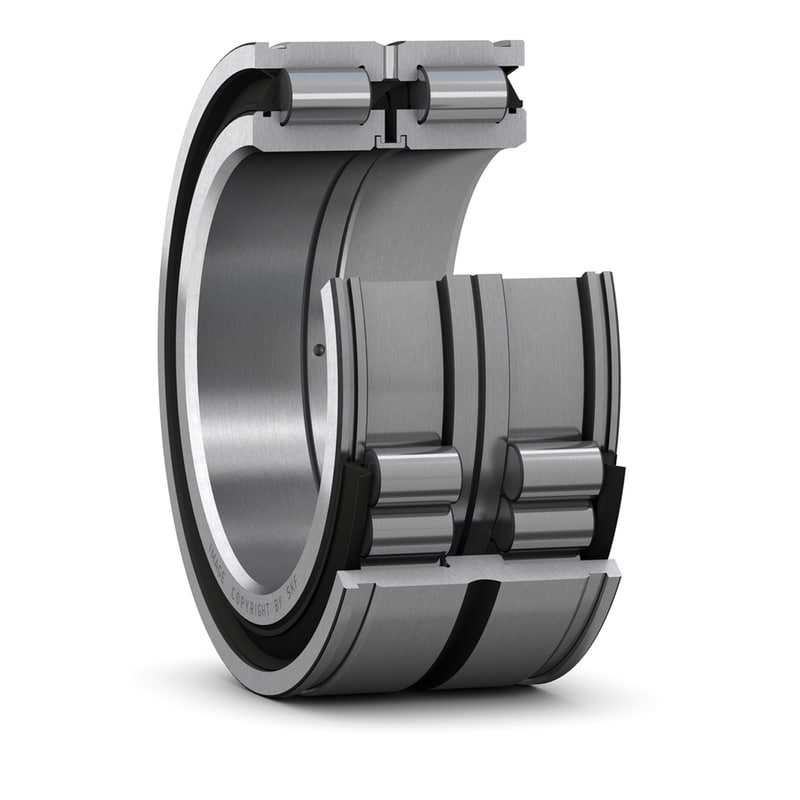

Double row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard and full complement bearings and also greased and sealed bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
180 mm
|
Outside diameter |
| B |
50 mm
|
Width |
| d1 |
≈ 149.5 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 159.6 mm
|
Shoulder diameter outer ring |
| b1 |
6 mm
|
Width annular lubrication groove outer ring |
| K |
3.5 mm
|
Diameter lubrication hole (outer ring) |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension (open bearings) |
| da |
min. 138 mm
|
Abutment diameter shaft |
|---|---|---|
| das |
144 mm
|
Abutment diameter shaft |
| Da |
max. 173 mm
|
Abutment diameter housing |
| ra |
max. 1.5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
297 kN
|
|---|---|---|
| Basic static load rating | C0 |
530 kN
|
| Fatigue load limit | Pu |
60 kN
|
| Reference speed |
1 600 r/min
|
|
| Limiting speed |
2 000 r/min
|
|
| Minimum load factor | kr |
0.25
|
| Mass bearing |
3.95 kg
|
