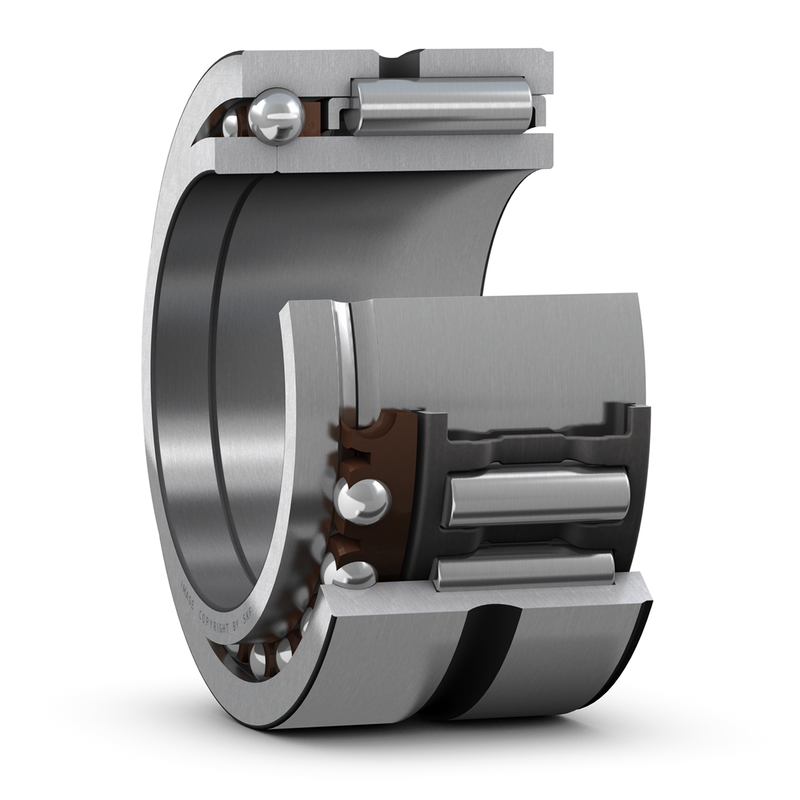

These bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in both directions. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
| d |
65 mm
|
Bore diameter |
|---|---|---|
| D |
90 mm
|
Outside diameter |
| B |
38 mm
|
Width |
| C |
34 mm
|
Width of outer ring |
| F |
72 mm
|
Diameter of inner ring raceway |
| r1,2 |
min. 1 mm
|
Chamfer dimension |
| da |
min. 70 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 85 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of fillet |
| Basic dynamic load rating, radial | C |
61.6 kN
|
|---|---|---|
| Basic static load rating, radial | C0 |
120 kN
|
| Basic dynamic load rating, axial | C |
9.96 kN
|
| Basic static load rating, axial | C0 |
19.2 kN
|
| Fatigue load limit, radial | Pu |
14.6 kN
|
| Fatigue load limit, axial | Pu |
0.816 kN
|
| Reference speed |
5 600 r/min
|
|
| Limiting speed |
6 300 r/min
|
| Mass |
0.64 kg
|
