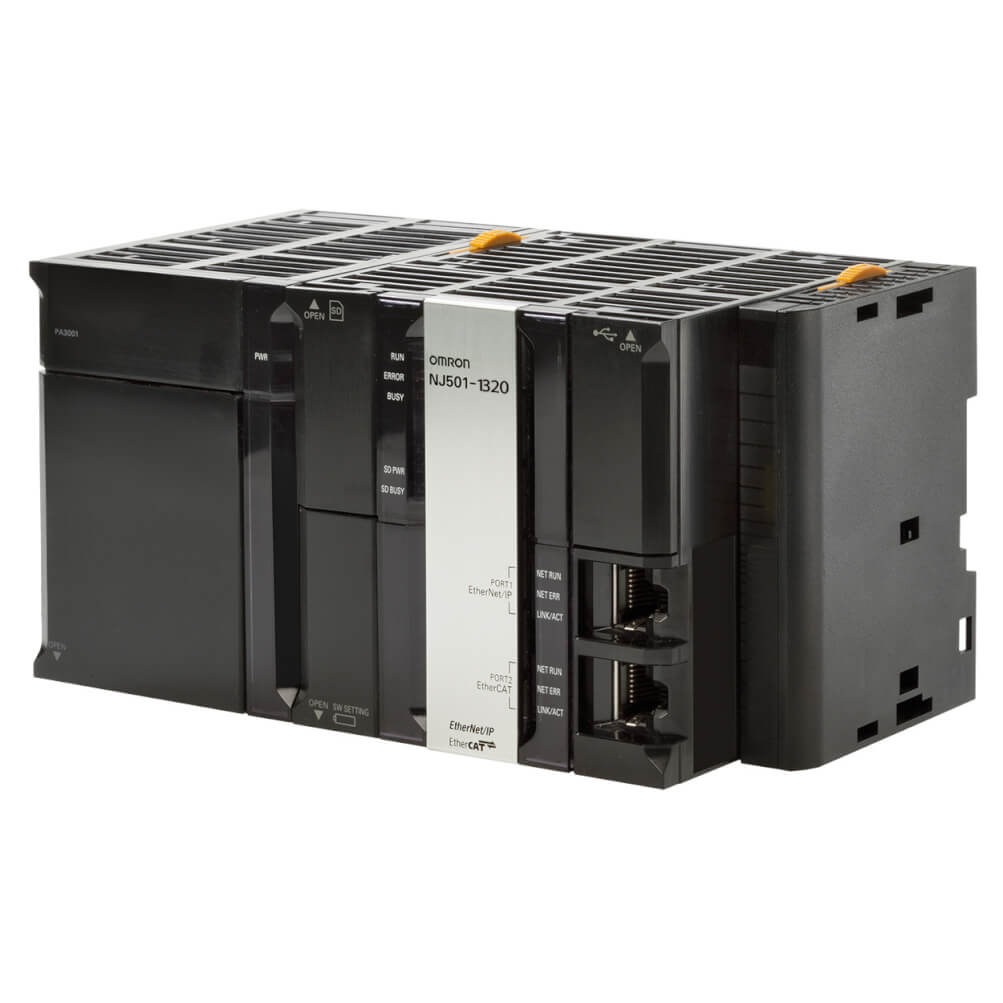

Sysmac NJ5 CPU with Robot kinematics, 16 axes, SQL client
| Controller functionality | DB connection, Motion control, Robotics, Sequence control |
| Max. number of synchronous axes | 16 |
| Max. number of axes (incl. virtual) | 16 |
| Max. number of robots | 4 |
| Primary task cycle time | 0.5 ms |
| Program memory | 20 MB |
| Variables memory | 6 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 192 |
| I/O system | CJ I/O Bus |
| Max. number of expansion units | 40 |
 |
GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06-H | 6-port EtherCAT Junction module, 24 VDC power supply, with node switches |
|
 |
HMC-SD492 | 4 GB SD memory card |
|
 |
NJ-PA3001 | Sysmac NJ power supply unit, 100-240 VAC, 30 W, “RUN” output relay |
|
 |
NJ-PD3001 | Sysmac NJ power supply unit, 24 VDC, 30 W, “RUN” output relay |
|
 |
W4S1-05D | 5-port enhanced Ethernet switch |
|
 |
CJ1W-BAT01 | Battery for CJ1M PLCs |
|
 |
CJ1W-TER01 | End plate for CJ1 CPU rack or expansion rack. Only required as spare part. |
|
Datasheet
EN PDF
Sysmac NJ5 CPU with Robot kinematics, (max 8 robots), 20MB memory, built-in EtherCAT (64 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP
Sysmac NJ5 CPU with Robot kinematics (max 4 robots), 20MB memory, built-in EtherCAT (16 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP
Sysmac NJ5 CPU, 20 mB memory, built-in EtherCAT (64 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP
Sysmac NJ5 CPU with Robot kinematics, (max 8 robots), 20MB memory, built-in EtherCAT (32 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP
