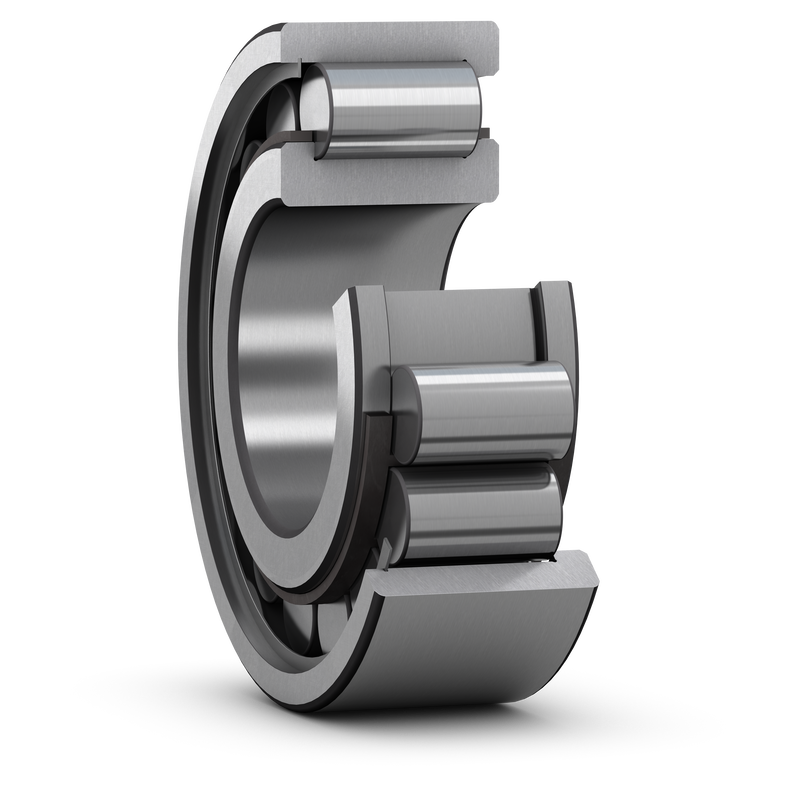

SKF single row high-capacity cylindrical roller bearings have the very high load carrying capacity of full complement bearings and the high speed capability of bearings with a cage. They are designed for applications such as industrial gearboxes, wind turbine gearboxes and mining equipment. Their internal design enables the bearings to accommodate axial displacement in one direction. The bearings are of non-separable design.
| SKF performance class |
SKF Explorer
|
| d |
190 mm
|
Bore diameter |
|---|---|---|
| D |
400 mm
|
Outside diameter |
| B |
132 mm
|
Width |
| d1 |
≈ 262.2 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 341.2 mm
|
Shoulder diameter outer ring |
| E |
360 mm
|
Raceway diameter outer ring |
| s |
max. 9.5 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 5 mm
|
Chamfer dimension |
| da |
min. 209 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 251 mm
|
Abutment diameter shaft |
| Da |
min. 351 mm
|
Abutment diameter housing |
| Da |
max. 380 mm
|
Abutment diameter housing |
| ra |
max. 4 mm
|
Fillet radius |
| ra |
max. 4 mm
|
Fillet radius |
| Basic dynamic load rating | C |
2 240 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 750 kN
|
| Fatigue load limit | Pu |
255 kN
|
| Reference speed |
1 700 r/min
|
|
| Limiting speed |
2 200 r/min
|
|
| Calculation factor | kr |
0.2
|
| Mass bearing |
78 kg
|
