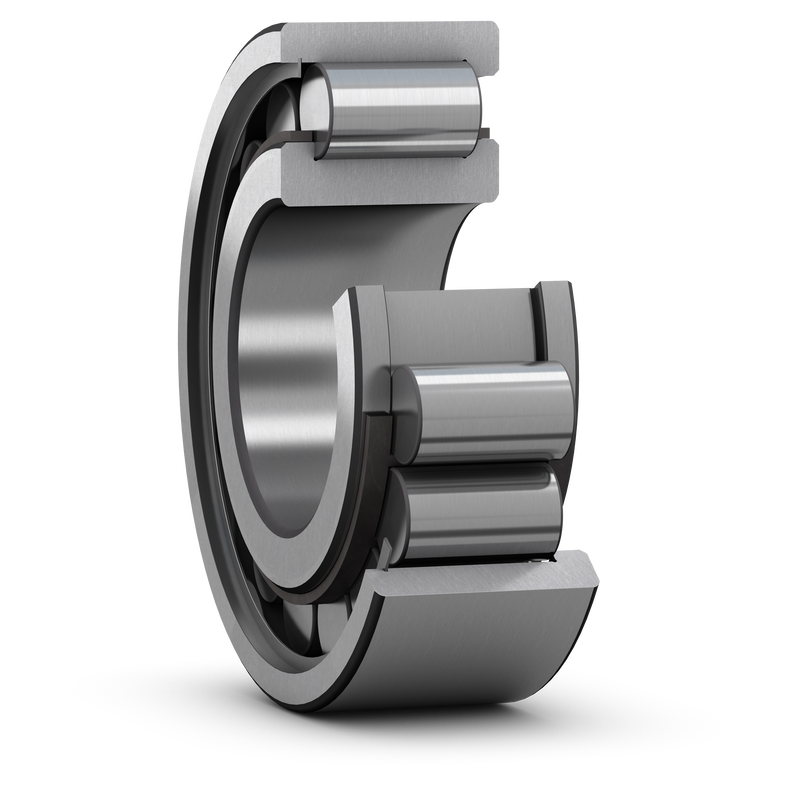

SKF single row high-capacity cylindrical roller bearings have the very high load carrying capacity of full complement bearings and the high speed capability of bearings with a cage. They are designed for applications such as industrial gearboxes, wind turbine gearboxes and mining equipment. Their internal design enables the bearings to accommodate axial displacement in one direction. The bearings are of non-separable design.
| SKF performance class |
SKF Explorer
|
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
280 mm
|
Outside diameter |
| B |
93 mm
|
Width |
| d1 |
≈ 181.7 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 234.1 mm
|
Shoulder diameter outer ring |
| E |
247 mm
|
Raceway diameter outer ring |
| s |
max. 8.7 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 4 mm
|
Chamfer dimension |
| da |
min. 147 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 174 mm
|
Abutment diameter shaft |
| Da |
min. 241 mm
|
Abutment diameter housing |
| Da |
max. 261.4 mm
|
Abutment diameter housing |
| ra |
max. 3 mm
|
Fillet radius |
| ra |
max. 3 mm
|
Fillet radius |
| Basic dynamic load rating | C |
1 120 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 340 kN
|
| Fatigue load limit | Pu |
146 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
3 400 r/min
|
|
| Calculation factor | kr |
0.2
|
| Mass bearing |
29 kg
|
