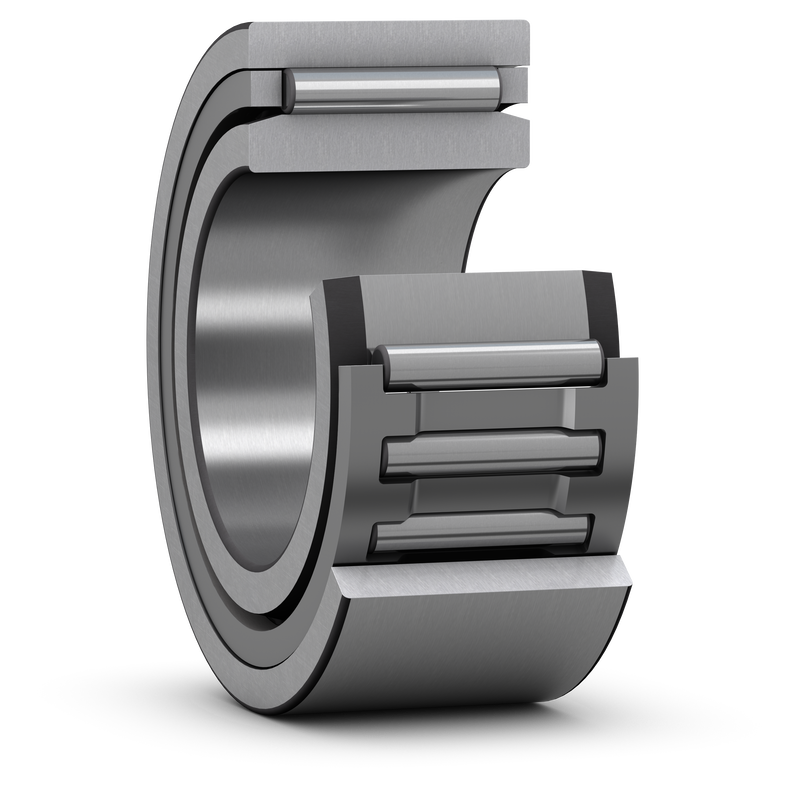

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. Bearings without flanges on the outer ring are separable, i.e. the outer ring and the needle roller and cage assembly can be mounted separately.
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
50 mm
|
Outside diameter |
| B |
17 mm
|
Width |
| E |
45 mm
|
Raceway diameter outer ring |
| F |
40 mm
|
Raceway diameter inner ring |
| r1,2 |
min. 0.3 mm
|
Chamfer dimension outer ring |
| s |
max. 0.8 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| da |
44.4 mm
|
Smallest permissible abutment diameter shaft, bearings without flanges |
|---|---|---|
| db |
39.5 mm
|
Smallest permissible abutment diameter shaft, bearings without flanges |
| Da |
45.5 mm
|
Abutment diameter housing (without flanges) |
| Db |
40.6 mm
|
Smallest permissible abutment diameter housing, bearings without flanges |
| ra |
max. 0.3 mm
|
Fillet radius |
| Basic dynamic load rating | C |
20.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
41.5 kN
|
| Fatigue load limit | Pu |
5 kN
|
| Reference speed |
10 000 r/min
|
|
| Limiting speed |
12 000 r/min
|
| Mass bearing |
0.11 kg
|
