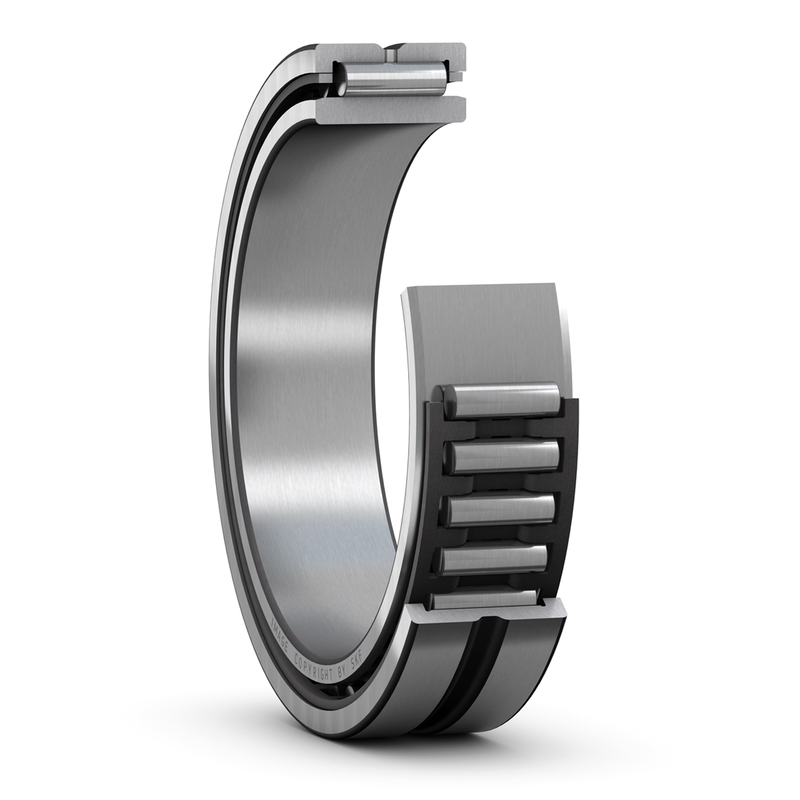

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
| d |
75 mm
|
Bore diameter |
|---|---|---|
| D |
105 mm
|
Outside diameter |
| B |
30 mm
|
Width |
| F |
85 mm
|
Raceway diameter inner ring |
| r1,2 |
min. 1 mm
|
Chamfer dimension outer ring |
| s |
max. 1.5 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| da |
min. 80 mm
|
Smallest permissible abutment diameter shaft, bearings with flanges |
|---|---|---|
| Da |
max. 100 mm
|
Abutment diameter housing (with flanges) |
| ra |
max. 1 mm
|
Fillet radius |
| Basic dynamic load rating | C |
84.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
170 kN
|
| Fatigue load limit | Pu |
21.6 kN
|
| Reference speed |
4 800 r/min
|
|
| Limiting speed |
5 300 r/min
|
| Mass bearing |
0.78 kg
|
