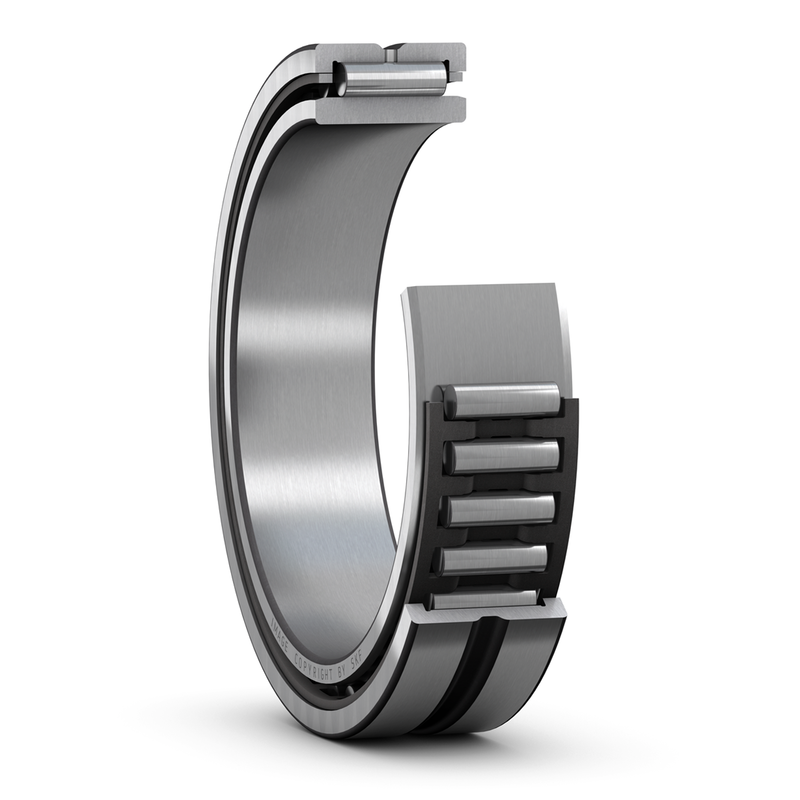

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
| d |
170 mm
|
Bore diameter |
|---|---|---|
| D |
215 mm
|
Outside diameter |
| B |
45 mm
|
Width |
| F |
185 mm
|
Raceway diameter inner ring |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension outer ring |
| s |
max. 1.5 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| da |
min. 176.5 mm
|
Smallest permissible abutment diameter shaft, bearings with flanges |
|---|---|---|
| Da |
max. 208.5 mm
|
Abutment diameter housing (with flanges) |
| ra |
max. 1 mm
|
Fillet radius |
| Basic dynamic load rating | C |
179 kN
|
|---|---|---|
| Basic static load rating | C0 |
520 kN
|
| Fatigue load limit | Pu |
56 kN
|
| Reference speed |
2 200 r/min
|
|
| Limiting speed |
2 400 r/min
|
| Mass bearing |
3.96 kg
|
