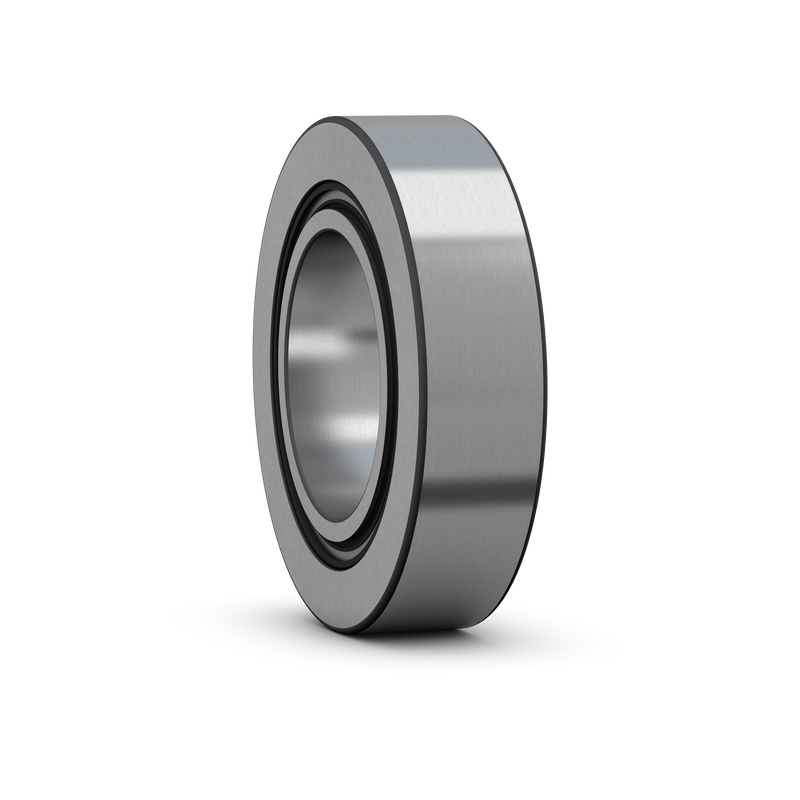

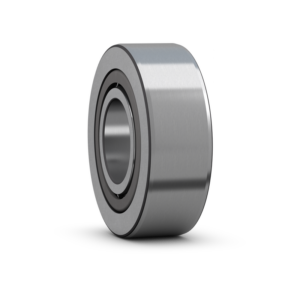

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing with an inner ring and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and are ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication. The inner ring can be mounted separately from the outer ring and roller and cage assembly.
| D |
52 mm
|
Outside diameter |
|---|---|---|
| d |
25 mm
|
Bore diameter |
| C |
17.8 mm
|
Width outer ring |
| B |
18 mm
|
Width inner ring |
| D1 |
38 mm
|
Recess diameter outer ring shoulder |
| F |
30 mm
|
Raceway diameter inner ring |
| r1,2 |
min. 1 mm
|
Chamfer dimension outer ring |
| r3,4 |
min. 0.3 mm
|
Chamfer dimension inner ring |
| Basic dynamic load rating | C |
16.8 kN
|
|---|---|---|
| Basic static load rating | C0 |
20 kN
|
| Fatigue load limit | Pu |
2.4 kN
|
| Maximum dynamic radial load | Fr |
max. 17.3 kN
|
| Maximum static radial load | F0r |
max. 24.5 kN
|
| Limiting speed |
3 400 r/min
|
| Mass support roller |
0.21 kg
|
