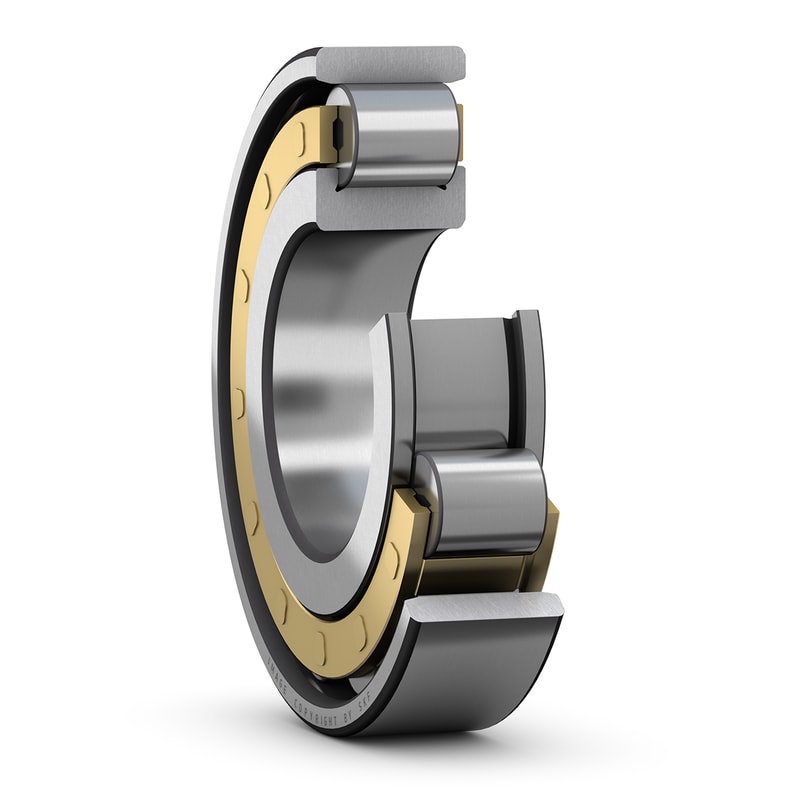

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| SKF performance class |
SKF Explorer
|
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
260 mm
|
Outside diameter |
| B |
55 mm
|
Width |
| d1 |
≈ 168 mm
|
Shoulder diameter of inner ring |
| E |
230 mm
|
Raceway diameter of outer ring |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| r3,4 |
min. 3 mm
|
Chamfer dimension |
| s |
max. 3.7 mm
|
Permissible axial displacement |
| da |
min. 134 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max. 226 mm
|
Diameter of spacer sleeve |
| Da |
min. 235 mm
|
Diameter of housing abutment |
| Da |
max. 245 mm
|
Diameter of housing abutment |
| ra |
max. 2.5 mm
|
Radius of fillet |
| rb |
max. 2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
610 kN
|
|---|---|---|
| Basic static load rating | C0 |
620 kN
|
| Fatigue load limit | Pu |
69.5 kN
|
| Reference speed |
2 800 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Minimum load factor | kr |
0.12
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
| Mass |
14.6 kg
|
