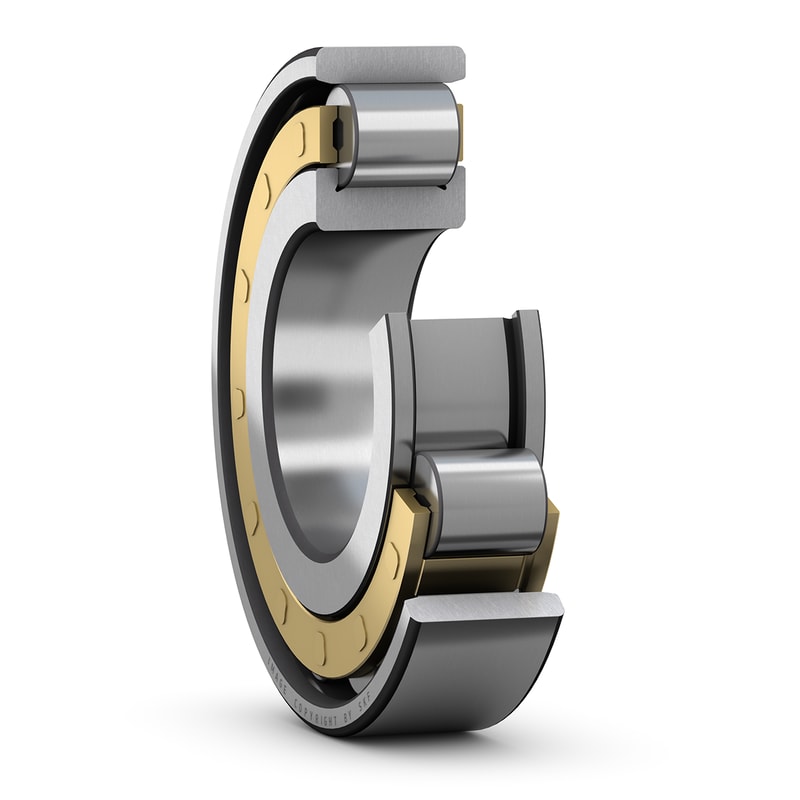

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| SKF performance class |
SKF Explorer
|
| d |
55 mm
|
Bore diameter |
|---|---|---|
| D |
120 mm
|
Outside diameter |
| B |
29 mm
|
Width |
| d1 |
≈ 77.5 mm
|
Shoulder diameter of inner ring |
| E |
106.5 mm
|
Raceway diameter of outer ring |
| r1,2 |
min. 2 mm
|
Chamfer dimension |
| r3,4 |
min. 2 mm
|
Chamfer dimension |
| s |
max. 2 mm
|
Permissible axial displacement |
| da |
min. 65 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max. 104 mm
|
Diameter of spacer sleeve |
| Da |
min. 109 mm
|
Diameter of housing abutment |
| Da |
max. 111 mm
|
Diameter of housing abutment |
| ra |
max. 2 mm
|
Radius of fillet |
| rb |
max. 2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
156 kN
|
|---|---|---|
| Basic static load rating | C0 |
143 kN
|
| Fatigue load limit | Pu |
18.6 kN
|
| Reference speed |
6 000 r/min
|
|
| Limiting speed |
7 000 r/min
|
|
| Minimum load factor | kr |
0.12
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
| Mass |
1.66 kg
|
