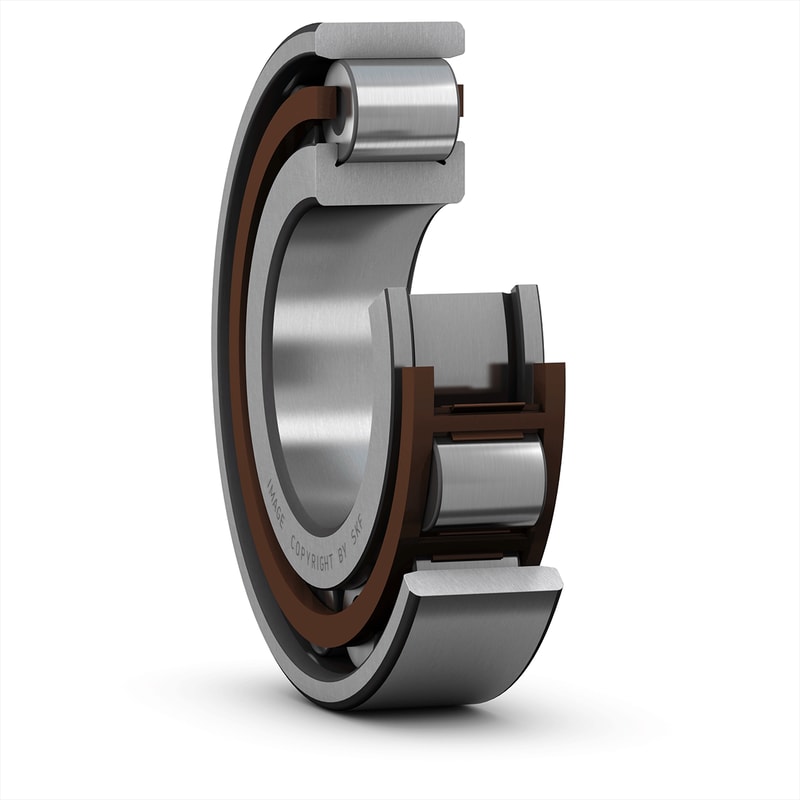

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| SKF performance class |
SKF Explorer
|
| d |
95 mm
|
Bore diameter |
|---|---|---|
| D |
170 mm
|
Outside diameter |
| B |
32 mm
|
Width |
| d1 |
≈ 120 mm
|
Shoulder diameter of inner ring |
| E |
154.5 mm
|
Raceway diameter of outer ring |
| r1,2 |
min. 2.1 mm
|
Chamfer dimension |
| r3,4 |
min. 2.1 mm
|
Chamfer dimension |
| s |
max. 1.7 mm
|
Permissible axial displacement |
| da |
min. 107 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max. 152 mm
|
Diameter of spacer sleeve |
| Da |
min. 157 mm
|
Diameter of housing abutment |
| Da |
max. 159 mm
|
Diameter of housing abutment |
| ra |
max. 2 mm
|
Radius of fillet |
| rb |
max. 2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
255 kN
|
|---|---|---|
| Basic static load rating | C0 |
265 kN
|
| Fatigue load limit | Pu |
32.5 kN
|
| Reference speed |
4 300 r/min
|
|
| Limiting speed |
4 800 r/min
|
|
| Minimum load factor | kr |
0.12
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
| Mass |
2.83 kg
|
