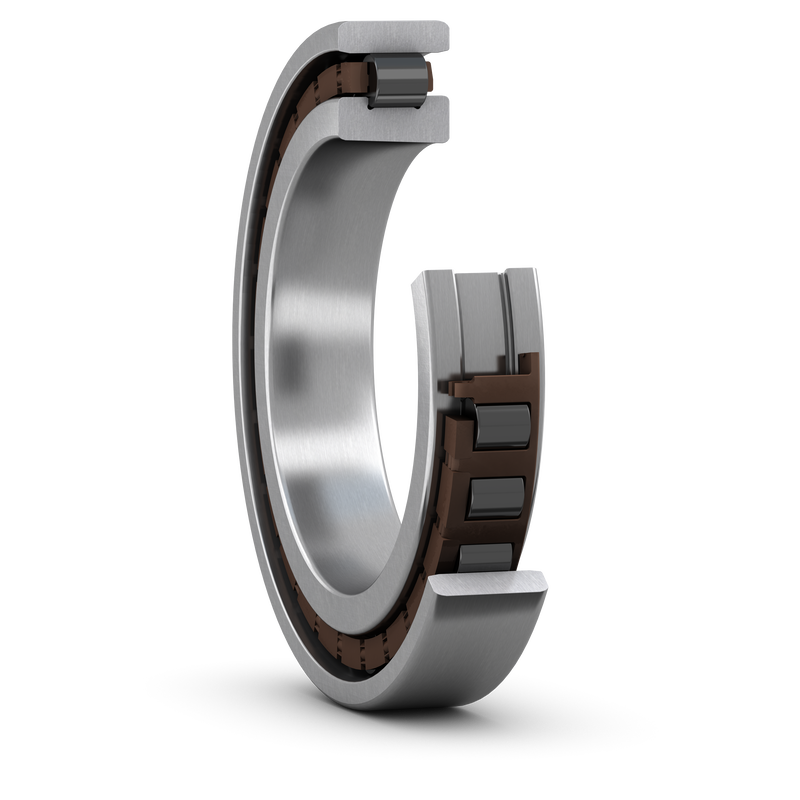

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| Bore type |
Tapered 1:12
|
| d |
95 mm
|
Bore diameter |
|---|---|---|
| D |
145 mm
|
Outside diameter |
| B |
24 mm
|
Width |
| d1 |
114.4 mm
|
Shoulder diameter inner ring |
| E |
132 mm
|
Raceway diameter outer ring |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension |
| r3,4 |
min. 1 mm
|
Chamfer dimension |
| s |
max. 3 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other (all) |
| da |
min. 103 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
min. 134 mm
|
Abutment diameter housing |
| Da |
max. 137 mm
|
Abutment diameter housing |
| ra |
max. 1.5 mm
|
Radius of fillet |
| dn |
130.3 mm
|
Oil nozzle position (not for variants with TNHA cage) |
| Basic dynamic load rating | C |
84.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
116 kN
|
| Fatigue load limit | Pu |
11.8 kN
|
| Attainable speed for grease lubrication |
8 000 r/min
|
|
| Attainable speed for oil-air lubrication |
9 000 r/min
|
|
| Reference grease quantity | Gref |
12.5 cm³
|
| Static radial stiffness (guideline value) |
1 430 N/µm
|
| Mass bearing |
0.98 kg
|
