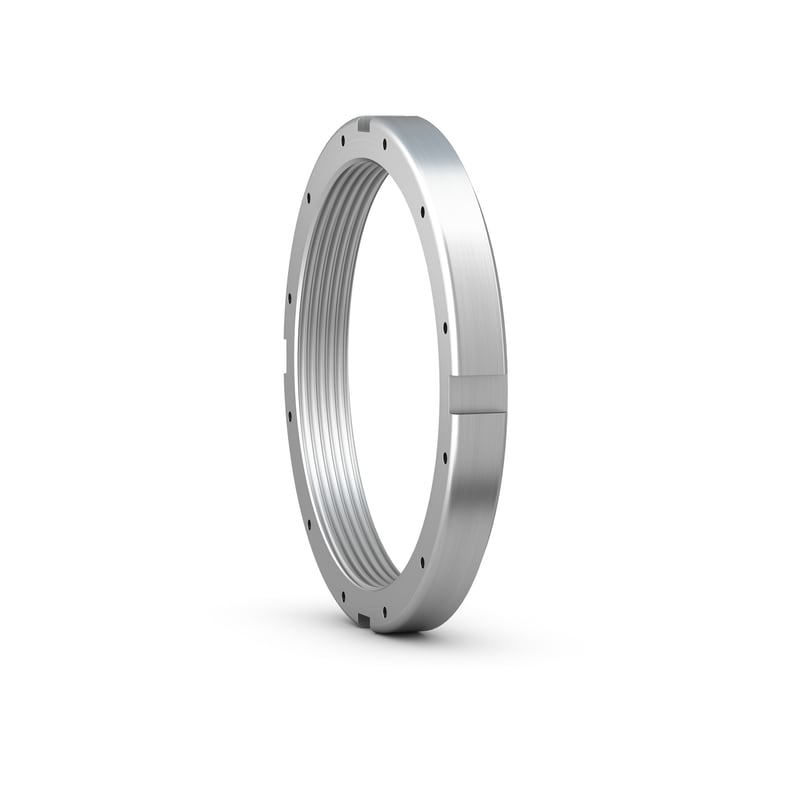

N lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer or locking plate to prevent unintentional loosening. N lock nuts can be reused, provided they are not damaged.
| G |
459.918 mm
|
Thread size |
|---|---|---|
|
5
|
Threads per inch | |
| d1 |
525.475 mm
|
Diameter locating side face |
| d2 |
507.619 mm
|
Pitch diameter threaded holes for locking clip |
| d3 |
max. 539.877 mm
|
Outside diameter |
| B |
60.579 mm
|
Width |
| B5 |
73.812 mm
|
Width including locking plate |
| b |
34.417 mm
|
Width locating slot |
| h |
15.342 mm
|
Depth locating slot |
| Mass lock nut |
29.7 kg
|
| Associated spanner |
TMFN 80-500
|
