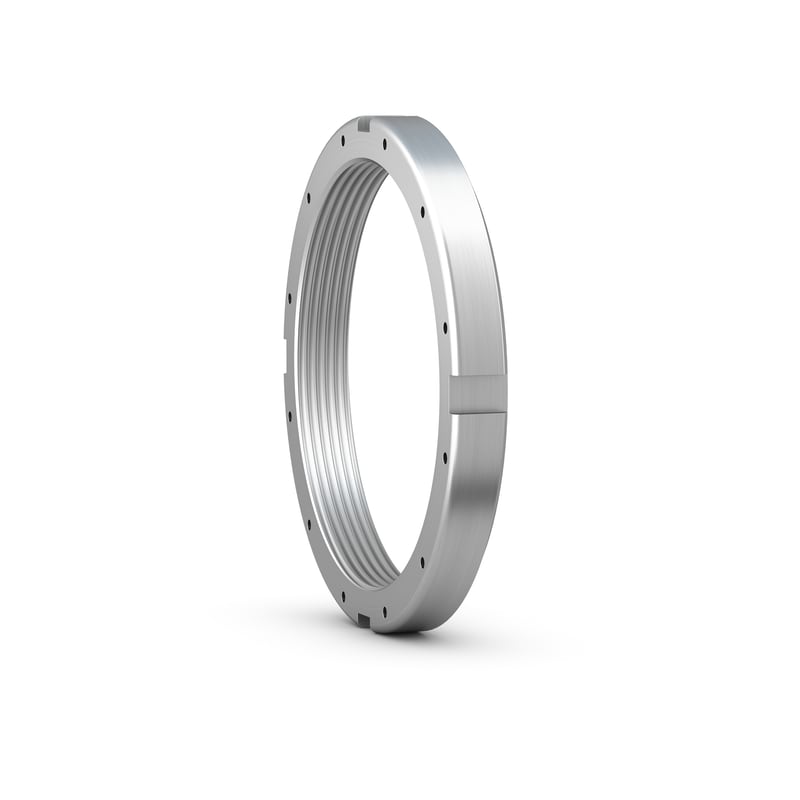

N lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer or locking plate to prevent unintentional loosening. N lock nuts can be reused, provided they are not damaged.
| G |
379.908 mm
|
Thread size |
|---|---|---|
|
5
|
Threads per inch | |
| d1 |
422.275 mm
|
Diameter locating side face |
| d2 |
418.719 mm
|
Pitch diameter threaded holes for locking clip |
| d3 |
max. 450.977 mm
|
Outside diameter |
| B |
48.666 mm
|
Width |
| B5 |
59.766 mm
|
Width including locking plate |
| b |
31.242 mm
|
Width locating slot |
| h |
15.342 mm
|
Depth locating slot |
| Mass lock nut |
17.2 kg
|
| Associated spanner |
TMFN 64-80
|
