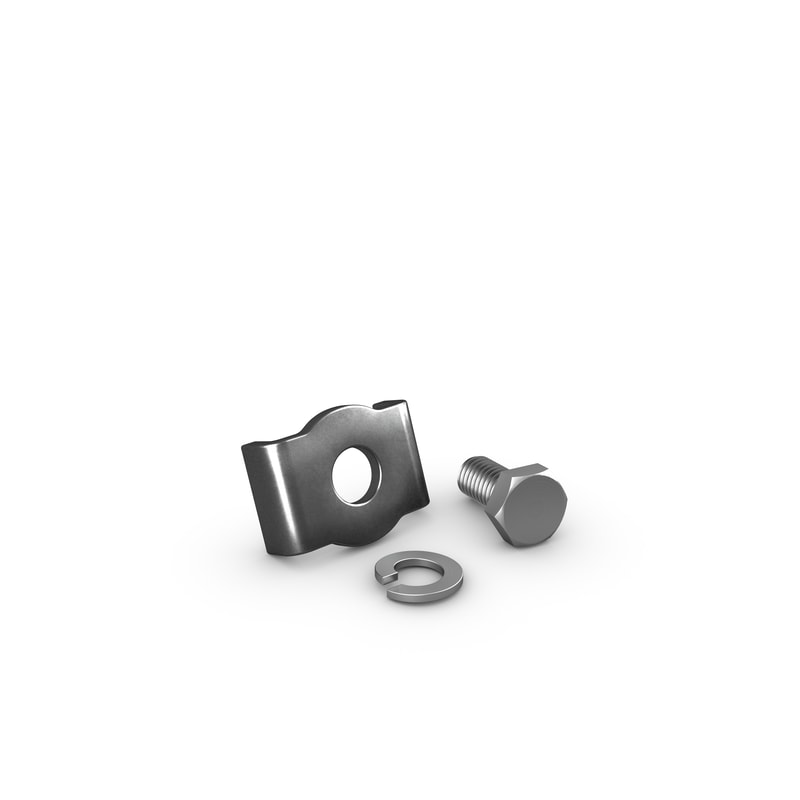

MS locking clips are locking devices, used to secure HM and HME lock nuts onto a shaft or adapter sleeve and prevent unintentional loosening. The locking clips engage a keyway in the shaft or adapter sleeve and one of the slots in the outside diameter of the lock nut. A bolt attaches the clips to the side face of the lock nut. A new locking clip should be used each time the corresponding lock nut is installed.
| B |
60 mm
|
Width |
|---|---|---|
| M |
21 mm
|
Height |
| M1 |
7 mm
|
Thickness material |
| M2 |
70 mm
|
Key width |
| M3 |
26 mm
|
Hole diameter |
| Mass locking clip |
0.65 kg
|
| Hexagonal head bolt |
M24x50
|
| Spring washer in accordance with DIN 128 |
A 24
|
