SIZE RANGE: 3/8 – 2 inch (10 mm – 50 mm)
MAX TEMP: 150°F (65°C) Inlet
MAX PRESSURE: MAX: 150 PSI*

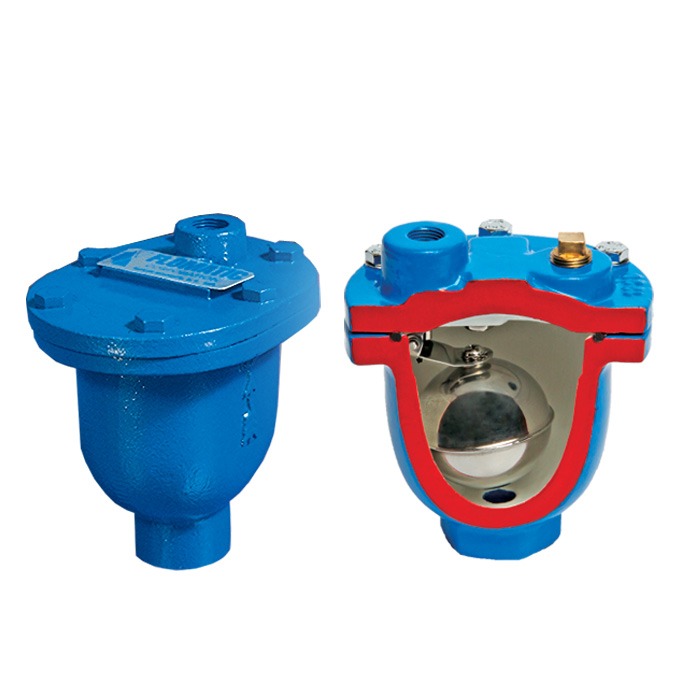

MINIAIR® – Cast iron fusion bonded epoxy coated body-stainless steel trim. Threaded female x female connections. Stainless seat with Viton o-ring. Small orifice. Vents under line pressure.
Inlet Pressure MIN: 20 PSI*
Inlet Pressure MAX: 150 PSI*
All Air Release, Air & Vacuum, and Universal Combination Valves meet or exceed ANSI/AWWA C512 standards.
2″” size – NSF ANSI 61 certified.
| Part Number | Size | None | None | List Price |
|---|---|---|---|---|
| 6500 | 3/8″” | 7 | 3/8″” | $269 |
| 6501 | 1/2″” | 7 | 3/8″” | $301 |
| 6502 | 3/4″” | 7 | 3/8″” | $333 |
| 6503 | 1″” | 7 | 1/2″” | $371 |
| 6504 | 2″” | 45 | 1/2″” | $1,147 |
