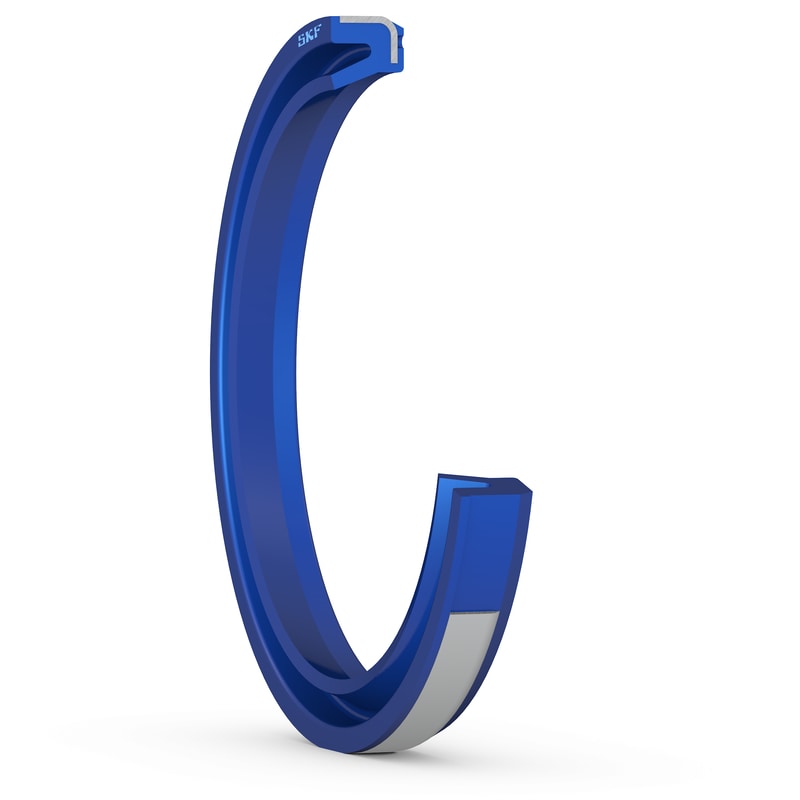

MCW375-1750-375-H9BPolyurethane press-in wiper seal with a single lip and a steel retaining ring
Hydraulic wiper seals prevent contaminants from entering a cylinder assembly and hydraulic system. MCW seals are polyurethane press-in wiper seals with a steel retaining ring. They have an effective, single wiping lip that sits flush with the cylinder head. This design allows compact arrangements when the cylinder is retracted.
Dimensions
| d |
44.45 mm
|
Rod diameter |
|---|---|---|
| D |
63.5 mm
|
Housing groove diameter |
| L |
10.48 mm
|
Housing groove width |
| S |
9.53 mm
|
Radial depth |
| R |
max. 0.64 mm
|
Groove radius |
| C |
min. 4.75 mm
|
Lead-in chamfer length on rod |
| C1 |
min. 0.71 mm
|
Lead-in chamfer length in housing |
| C1 |
max. 1.02 mm
|
Lead-in chamfer length in housing |
|
tol d Tolerance for rod diameter is determined by the rod seal.
|
||
| tol D |
0.03 mm
|
Upper limit deviation |
|---|---|---|
|
-0.03 mm
|
Lower limit deviation | |
| tol L |
0.381 mm
|
Upper limit deviation |
|
0 mm
|
Lower limit deviation | |
Materials
| Primary sealing element |
Polyurethane (TPU U-1023)
|
Operating conditions
| Speed |
max. 1.5 m/s
|
|
| Temperature |
min. -40 °C
|
|
| Temperature |
max. 110 °C
|
|
|
Maximum values of application parameters (e.g. pressure, speed, temperature) should not be applied continuously nor simultaneously.
|
||
