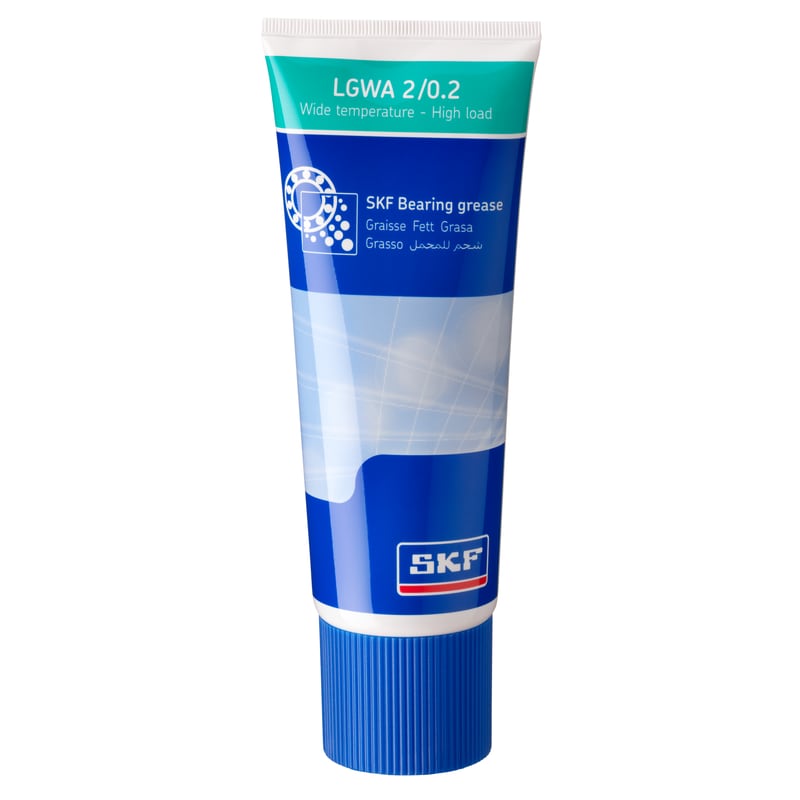

A premium quality mineral oil based, lithium complex grease with extreme pressure (EP) performance. LGWA 2 is recommended for industrial and automotive applications when loads or temperatures exceed the range of general purpose greases.
| Product weight | 0.2 kg |
| Recommended applications |
Fans and electric motors
Conveyor head and tail pulley bearings
|
| Suitable for High load applications | Ο |
| Suitable for Vertical shaft applications | Ο |
| Suitable for applications with Oscilating movements | − |
| Suitable for applications with Severe vibrations | + |
| Suitable for applications that require Rust protection | + |
| Suitable for applications that require Water resistance | + |
| Suitable for applications that require Frequent start-up | + |
| Speed (max.) n x dm (x 1000) | 300 |
| Operating temperature range | -30 – 140 °C |
| Dropping point (min) ISO 2176 | 250 °C |
| Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm) | 265 – 295 |
| Penetration DIN ISO 2137, Prolonged (max.), 100 000 strokes, 10⁻¹mm | +50 (325 max) |
| Mechanical stability – Roll stability, ASTM D1831 (max.) 50 hrs at 80°C, 10⁻¹mm | +50 |
| Mechanical stability, V2F test, 144 hrs | M |
| Corrosion protection, Emcor, ISO 11007, Distilled water | 0-0 |
| Corrosion protection, Emcor, ISO 11007 modified, Water washout | 0-0 |
| Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl | – |
| Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C | 1 |
| Oil separation DIN 51817, 40°C, % | 1-5 |
| Lubrication ability, R2F test B at 120°C | Pass at 100°C |
| Copper corrosion (max.) DIN 51811 /ASTM D4048, 24 hrs at 100°C | 2 max. |
| Rolling bearing grease life (max.) ROF test, L50 life, 10000 r/min, hrs at °C | min. 1000 at 130°C |
| EP performance – 4 ball – Wear scar (max.) DIN 51350/5, 1400N | 1.8 mm |
| EP performance – 4 ball – Weld load (min.) DIN 51350/4 | 2 600 N |
| DIN 51825 code | KP2N-30 |
| NLGI consistency class | 2 |
| Thickener | Lithium complex |
| Colour | Amber |
| Base oil type | Mineral |
| Base oil viscosity DIN 51562 at 40 °C | 250 mm²/s |
| Base oil viscosity DIN 51562 at 100 °C | 17 mm²/s |
| Shelf life | 5 year |
| Packsize | 200 g tube |
| Available for single point lubrication | yes |
