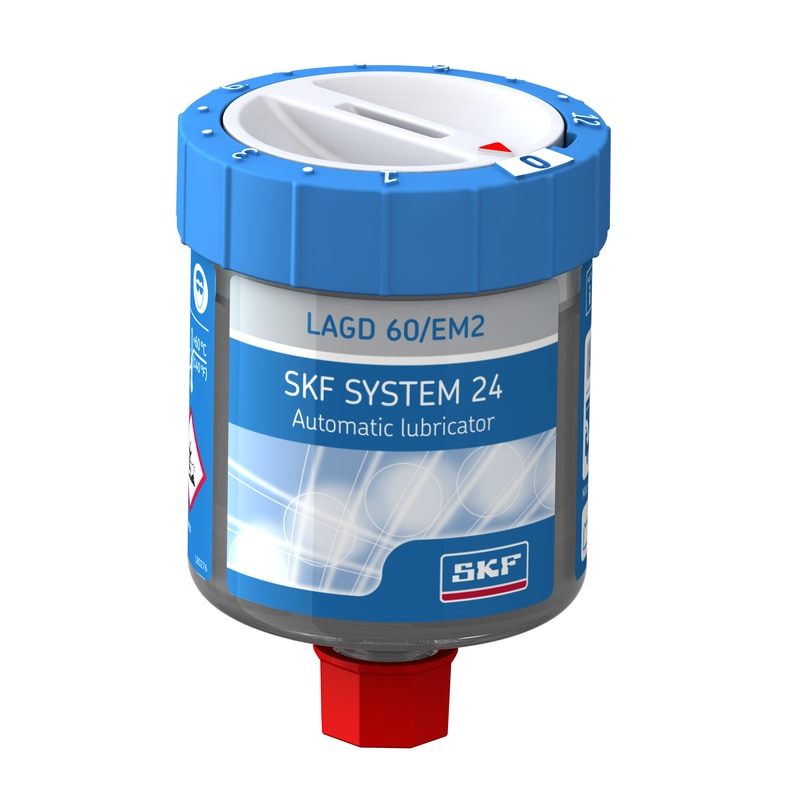

LAGD 60/EM2 is filled with SKF LGEM 2 high viscosity bearing grease with solid lubricants, recommended for low speeds and high loads and vibrations.. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.
| Lubricant quantity | 60 ml |
| Nominal emptying time | Adjustable, 1–12 months |
| Maximum Pressure | 5 bar |
| Maximum feed line length | 0.3 m |
| Product weight | 0.12 kg |
| Degree of protection (IP) | IP 68 |
| Lubricant | LGEM 2 |
| Lubricant description | High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations |
| Lubricant operating temperature range | –20 to +120 °C |
| Ambient temperature range | -20 – 60 °C |
| Shelf life | 2 year |
| Recommended applications |
Rolling element bearings running at low speed and very high loads
Jaw crushers
Crane arms
|
| Drive mechanism | Gas cell producing inert gas |
| Connecting thread | R 1/4 |
| Intrinsically safe approval | II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma |
| Power source | Gas cell |
| Recommended storage temperature | 20 °C |
