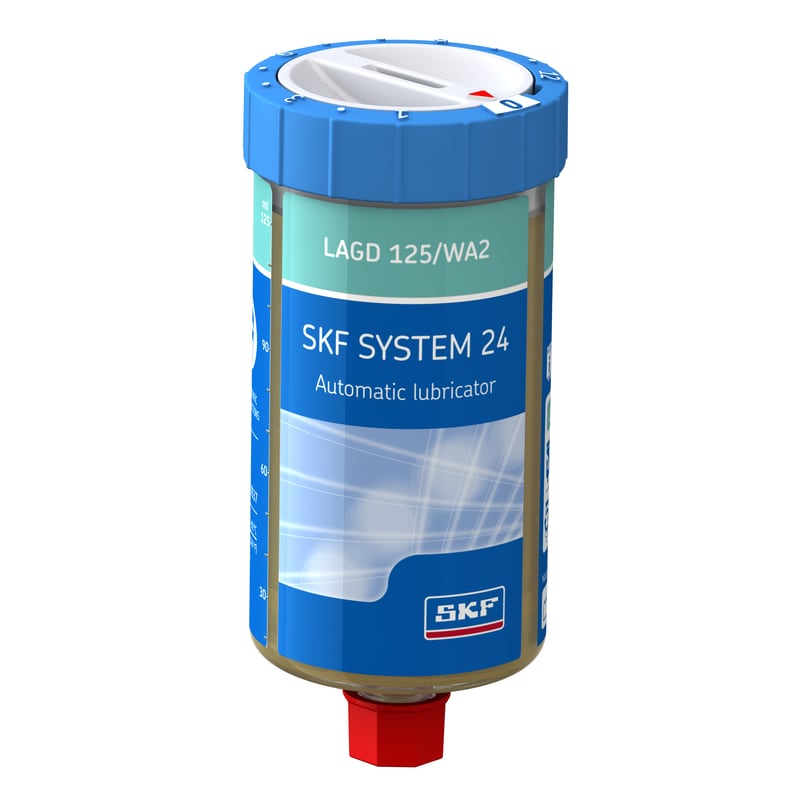

LAGD 125/WA2 is filled with SKF LGWA 2 grease for wide temperature ranges and extreme pressures, recommended for electric motors, conveyors, fans and pumps. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.
| Lubricant quantity | 125 ml |
| Nominal emptying time | Adjustable, 1–12 months |
| Maximum Pressure | 5 bar |
| Maximum feed line length | 0.3 m |
| Product weight | 0.19 kg |
| Degree of protection (IP) | IP 68 |
| Lubricant | LGWA 2 |
| Lubricant description | Wide temperature range, extreme pressure, high load bearing grease |
| Lubricant operating temperature range | –30 to +140 °C |
| Ambient temperature range | -20 – 60 °C |
| Shelf life | 2 year |
| Recommended applications |
Fans and electric motors
Conveyor head and tail pulley bearings
|
| Drive mechanism | Gas cell producing inert gas |
| Connecting thread | R 1/4 |
| Intrinsically safe approval | II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma |
| Power source | Gas cell |
| Recommended storage temperature | 20 °C |
