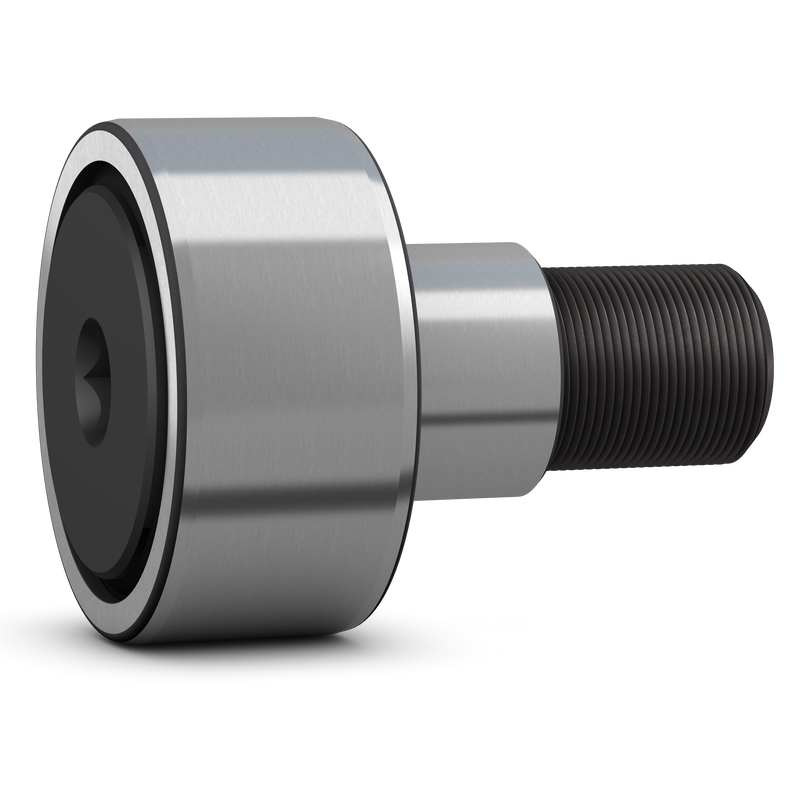

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. The design includes an eccentric collar pressed onto the stud, and a thick-walled outer ring with a crowned running surface. The bearings are supplied sealed and ready-to-mount, and can be relubricated via the stud.
| Outside diameter | D |
22 mm
|
|---|---|---|
| Attachment diameter | d |
13 mm
|
| Total length | B |
36.2 mm
|
| Width outer ring | C |
12 mm
|
| Length shank on stud | B1 |
23 mm
|
| Width locking collar | B3 |
10 mm
|
| Distance face outer ring to face side washer | C1 |
0.6 mm
|
| Outside diameter flange ring | d1 |
17.1 mm
|
| Thread stud | G |
M10x1
|
| Length thread | G1 |
12 mm
|
| Seat diameter for lubrication accessories | M |
3 mm
|
| Width across flats | SW |
5 mm
|
| Eccentricity | c |
0.5 mm
|
| Basic dynamic load rating | C |
5.61 kN
|
|---|---|---|
| Basic static load rating | C0 |
9.5 kN
|
| Fatigue load limit | Pu |
1.06 kN
|
| Maximum dynamic radial loads | Fr |
max. 5.5 kN
|
| Maximum static radial loads | F0r |
max. 7.8 kN
|
| Limiting speed |
3 600 r/min
|
| Mass cam follower |
0.048 kg
|
| Recommended tightening torque |
15 N·m
|
