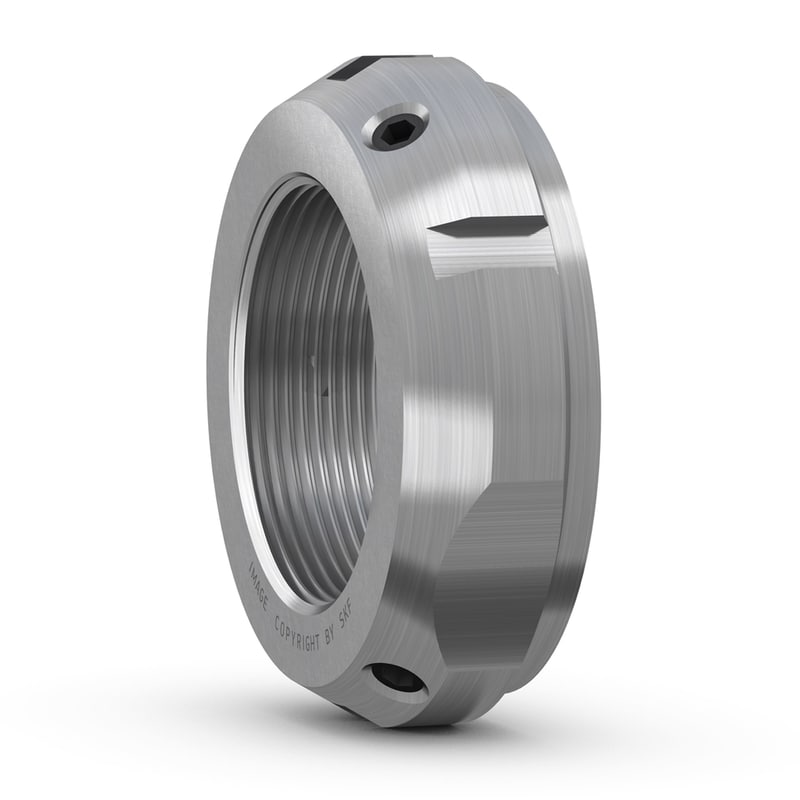

KMT precision lock nuts are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm
| G |
M 190×3
|
Thread |
|---|---|---|
| d1 |
214 mm
|
Outside diameter locating side face |
| B |
32 mm
|
Width |
| d3 |
225 mm
|
Outside diameter |
| d4 |
192 mm
|
Inner diameter locating side face |
| d5 |
212 mm
|
Diameter side face opposite to bearing |
| b |
16 mm
|
Width locating slot |
| h |
5 mm
|
Depth locating slot |
| Axial static load carrying capacity |
1 280 kN
|
| Mass |
2.55 kg
|
| Associated spanner (Hook spanner in accordance with DIN 1810) |
TMFN 30-40
|
| Set / Locking screw size |
M10
|
| Recommended tightening torque |
35 N·m
|
