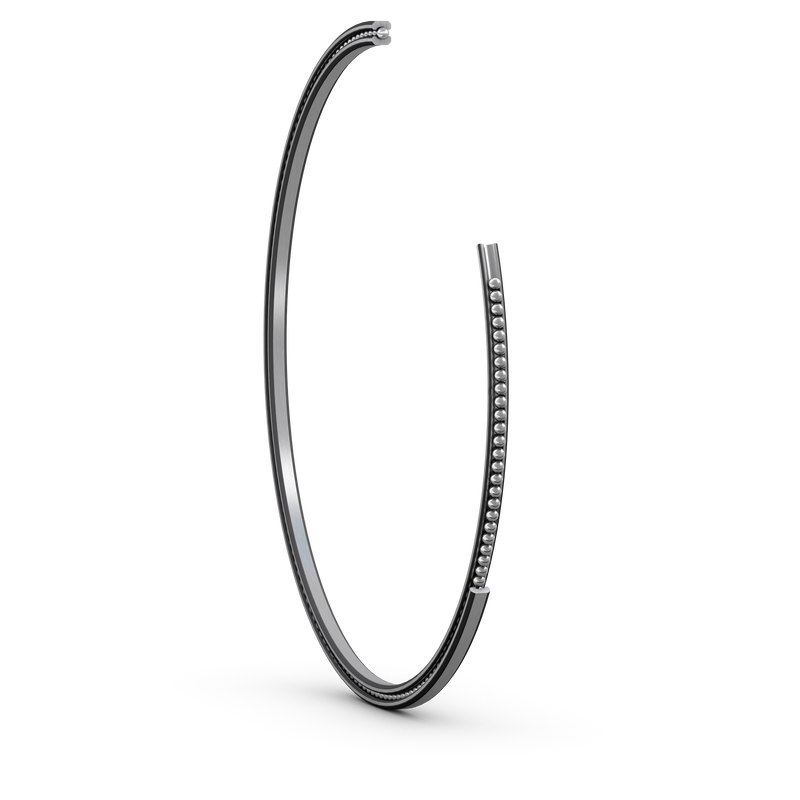

These angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are not recommended for applications having continuous rotation.
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
136 mm
|
Outside diameter |
| H |
3 mm
|
Radial cross section |
| B |
2.5 mm
|
Width |
| d1 |
≈ 132.2 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 133.8 mm
|
Shoulder diameter outer ring/ inner diameter housing washer |
|
1.588 mm
|
Ball diameter | |
|
0.25 mm
|
Maximum radius of shaft or housing fillet |
| Dynamic load rating, Kaydon, radial direction | CK |
912 N
|
|---|---|---|
| Basic static load rating, radial direction | C0 |
1 407 N
|
| Maximum loading limit, axial direction | Fa |
778 N
|
| Mass bearing |
≈ 0.019 kg
|
