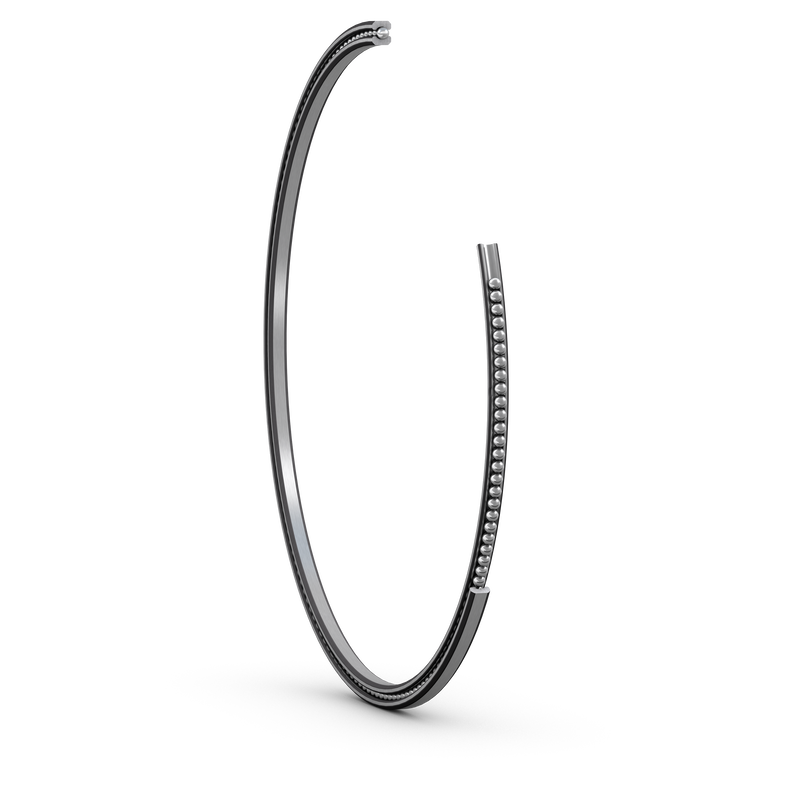

Radial contact ball bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are not recommended for applications having continuous rotation.
| d |
70 mm
|
Bore diameter |
|---|---|---|
| D |
76 mm
|
Outside diameter |
| H |
3 mm
|
Radial cross section |
| B |
2.489 mm
|
Width |
| d1 |
≈ 72.2 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 73.8 mm
|
Shoulder diameter outer ring/ inner diameter housing washer |
|
1.588 mm
|
Ball diameter | |
|
0.25 mm
|
Maximum radius of shaft or housing fillet |
| Dynamic load rating, Kaydon, radial direction | CK |
667 N
|
|---|---|---|
| Basic static load rating, radial direction | C0 |
827 N
|
| Mass bearing |
≈ 0.011 kg
|
