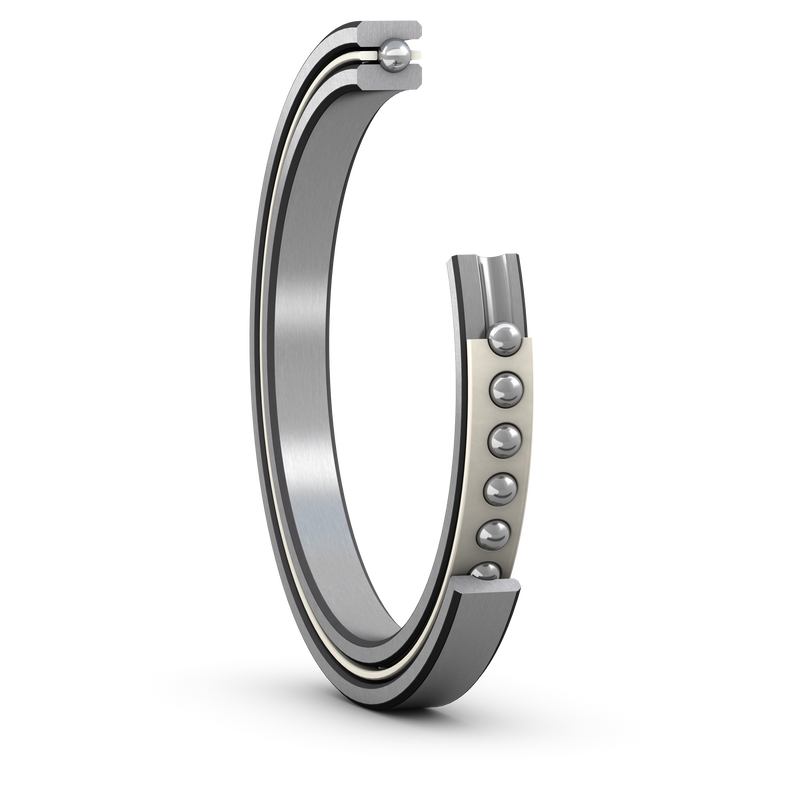

These angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in only one direction. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are available with metric and inch boundary dimensions. Depending on the design and series, the bearings can be provided with chemical and corrosion resistance.
| d |
38.1 mm
|
Bore diameter |
|---|---|---|
| D |
47.625 mm
|
Outside diameter |
| H |
4.763 mm
|
Radial cross section |
| B |
4.763 mm
|
Width |
| d1 |
≈ 41.656 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 44.069 mm
|
Shoulder diameter outer ring |
| D4 |
≈ 45.06 mm
|
Shoulder diameter outer ring |
|
2.381 mm
|
Ball diameter | |
|
0.381 mm
|
Maximum radius of shaft or housing fillet |
| Dynamic load rating, Kaydon, radial direction | CK |
1.06 kN
|
|---|---|---|
| Basic static load rating, radial direction | C0 |
2.14 kN
|
| Basic static load rating, axial direction | C0a |
6.14 kN
|
| Mass bearing |
≈ 0.017 kg
|
