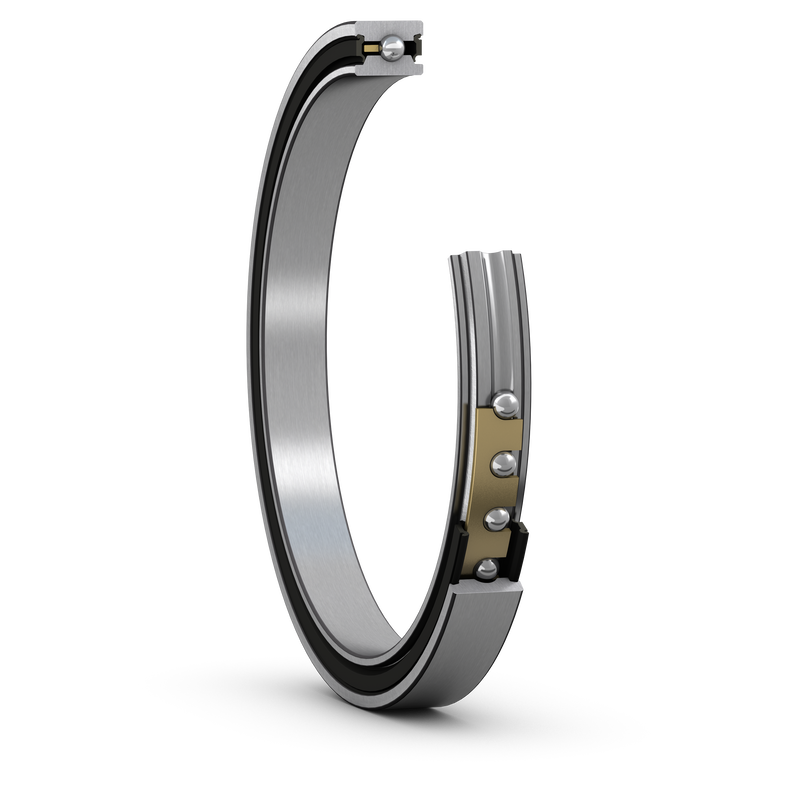

Radial contact ball bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The bearings are available with metric and inch boundary dimensions.
| d |
254 mm
|
Bore diameter |
|---|---|---|
| D |
273.05 mm
|
Outside diameter |
| H |
9.525 mm
|
Radial cross section |
| B |
12.7 mm
|
Width |
| d2 |
≈ 257.81 mm
|
Recess diameter inner ring |
| D2 |
≈ 267.792 mm
|
Recess diameter outer ring |
|
4.763 mm
|
Ball diameter | |
|
0.381 mm
|
Maximum radius of shaft or housing fillet |
| Dynamic load rating, Kaydon, radial direction | CK |
7.92 kN
|
|---|---|---|
| Basic static load rating, radial direction | C0 |
22.2 kN
|
| Starting torque max. no load |
1.808 N·m
|
|
| Limiting speed |
650 r/min
|
| Mass bearing |
≈ 0.59 kg
|
