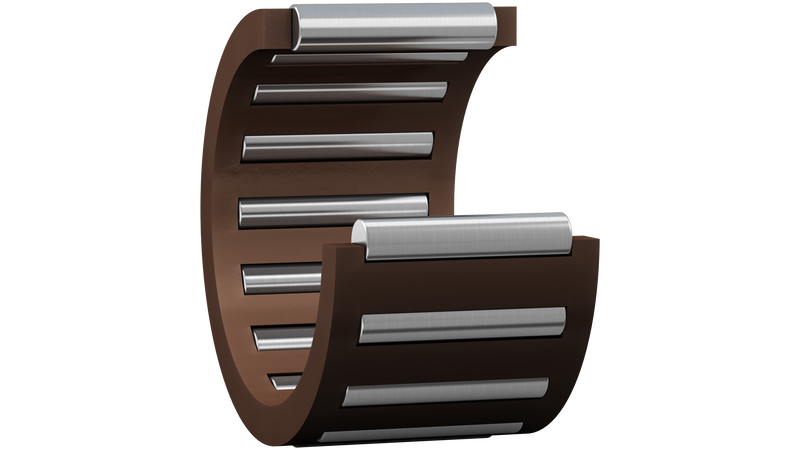

Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved.
| Fw |
10 mm
|
Diameter under rollers |
|---|---|---|
| Ew |
13 mm
|
Outside diameter roller complement |
| U |
10 mm
|
Width needle roller and cage assembly |
| Basic dynamic load rating | C |
4.57 kN
|
|---|---|---|
| Basic static load rating | C0 |
5.7 kN
|
| Fatigue load limit | Pu |
0.63 kN
|
| Reference speed |
28 000 r/min
|
|
| Limiting speed |
32 000 r/min
|
| Mass needle roller and cage assembly |
0.0016 kg
|
