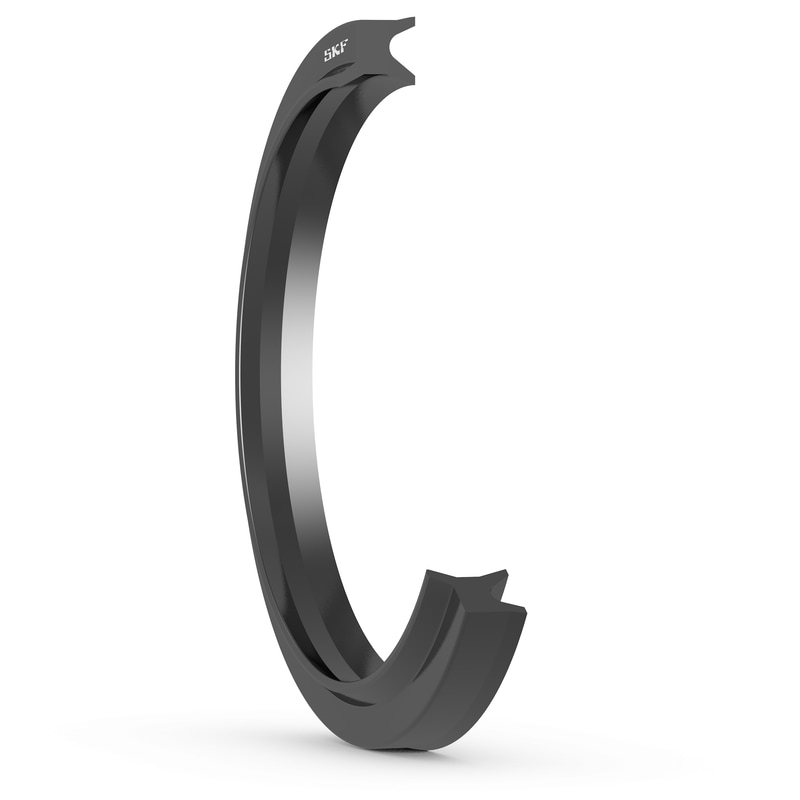

HW-95X105X7-J2GPolyurethane snap-in wiper seal with double lips
Hydraulic wiper seals prevent contaminants from entering a cylinder assembly and hydraulic system. HW seals are polyurethane snap-in wiper seals. They have a double-lip design with an internal-facing wiper lip that regulates the lubrication film on the rod. Double-acting wipers improve the performance and extend the service life of rod sealing systems.
Dimensions
| d |
95 mm
|
Rod diameter |
|---|---|---|
| D |
105 mm
|
Housing groove diameter |
| D2 |
100 mm
|
Housing shoulder diameter |
| L |
7 mm
|
Housing groove width |
| S |
5 mm
|
Radial depth |
| R |
max. 0.3 mm
|
Groove radius |
| C |
min. 3.5 mm
|
Lead-in chamfer length on rod |
|
tol d Tolerance for rod diameter is determined by the rod seal.
|
||
| tol D |
0.22 mm
|
Upper limit deviation |
|---|---|---|
|
0 mm
|
Lower limit deviation | |
|
H11
|
Tolerance class for housing diameter | |
| tol D2 |
0 mm
|
Upper limit deviation |
|
0 mm
|
Lower limit deviation | |
| tol L |
0.2 mm
|
Upper limit deviation |
|
0 mm
|
Lower limit deviation | |
Materials
| Primary sealing element |
Polyurethane (TPU U-1003)
|
Operating conditions
| Speed |
max. 0.75 m/s
|
|
| Temperature |
min. -40 °C
|
|
| Temperature |
max. 100 °C
|
|
|
Maximum values of application parameters (e.g. pressure, speed, temperature) should not be applied continuously nor simultaneously.
|
||
