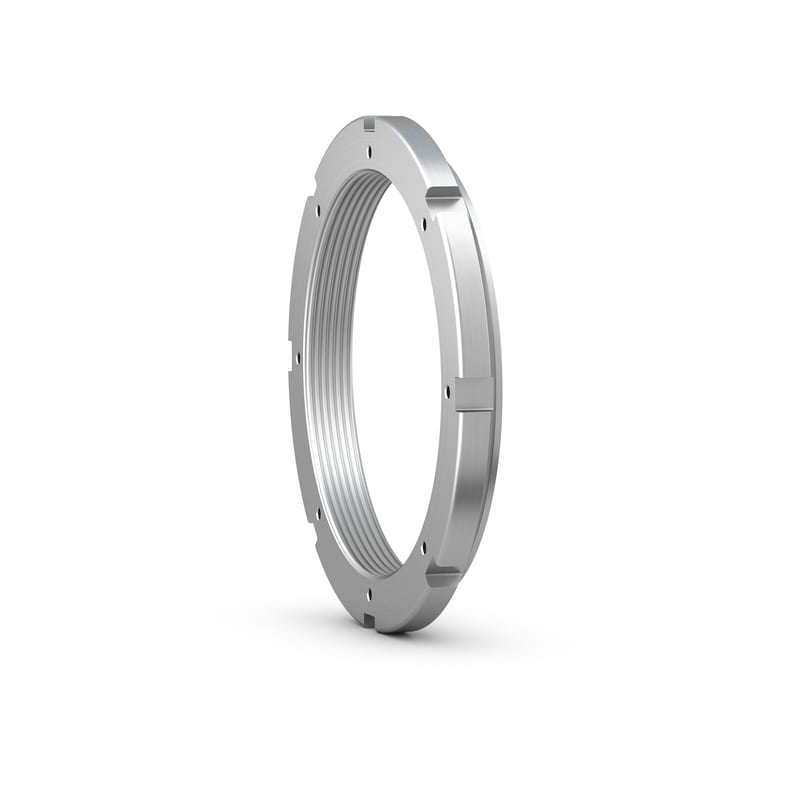

Lock nuts are used to locate bearings onto a shaft. Additionally, they can be used to mount bearings with a tapered bore onto tapered shaft seats or adapter sleeves, and to dismount bearings from withdrawal sleeves. They are also frequently used to secure gears, belt pulleys, and other machine components. SKF lock nuts are available with a variety of methods for locking the nut onto a shaft.
| G |
Tr 630×6
|
Thread |
|---|---|---|
| d3 |
800 mm
|
Outside diameter |
| B |
95 mm
|
Width |
| d1 |
730 mm
|
Diameter locating side face |
| d2 |
685 mm
|
Pitch diameter threaded holes for locking clip |
| B3 |
18 mm
|
Stand-out of locating face |
| B5 |
120 mm
|
Width including locking clip |
| b |
50 mm
|
Width locating slot |
| h |
28 mm
|
Depth locating slot |
| Mass lock nut |
115 kg
|
| Associated spanner |
TMFN 600-750
|
| Associated eyebolt for handling |
M 12
|
