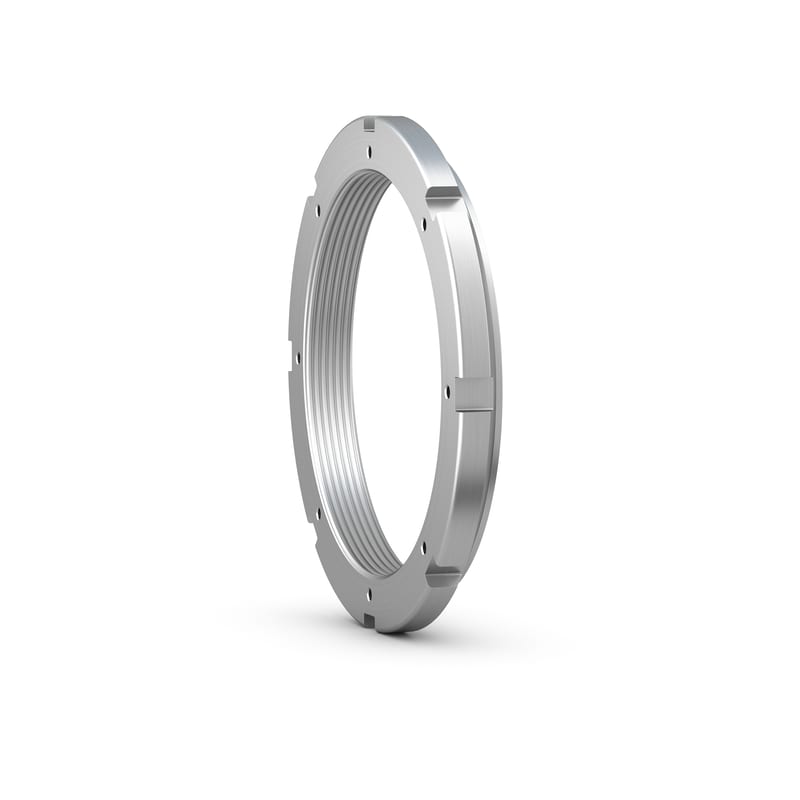

Lock nuts are used to locate bearings onto a shaft. Additionally, they can be used to mount bearings with a tapered bore onto tapered shaft seats or adapter sleeves, and to dismount bearings from withdrawal sleeves. They are also frequently used to secure gears, belt pulleys, and other machine components. SKF lock nuts are available with a variety of methods for locking the nut onto a shaft.
| G |
Tr 1060×8
|
Thread |
|---|---|---|
| d3 |
1 200 mm
|
Outside diameter |
| B |
100 mm
|
Width |
| d1 |
1 145 mm
|
Diameter locating side face |
| d2 |
1 100 mm
|
Pitch diameter threaded holes for locking clip |
| B3 |
25 mm
|
Stand-out of locating face |
| B5 |
125 mm
|
Width including locking clip |
| b |
60 mm
|
Width locating slot |
| h |
25 mm
|
Depth locating slot |
| Mass lock nut |
172 kg
|
| Associated eyebolt for handling |
M 16
|
