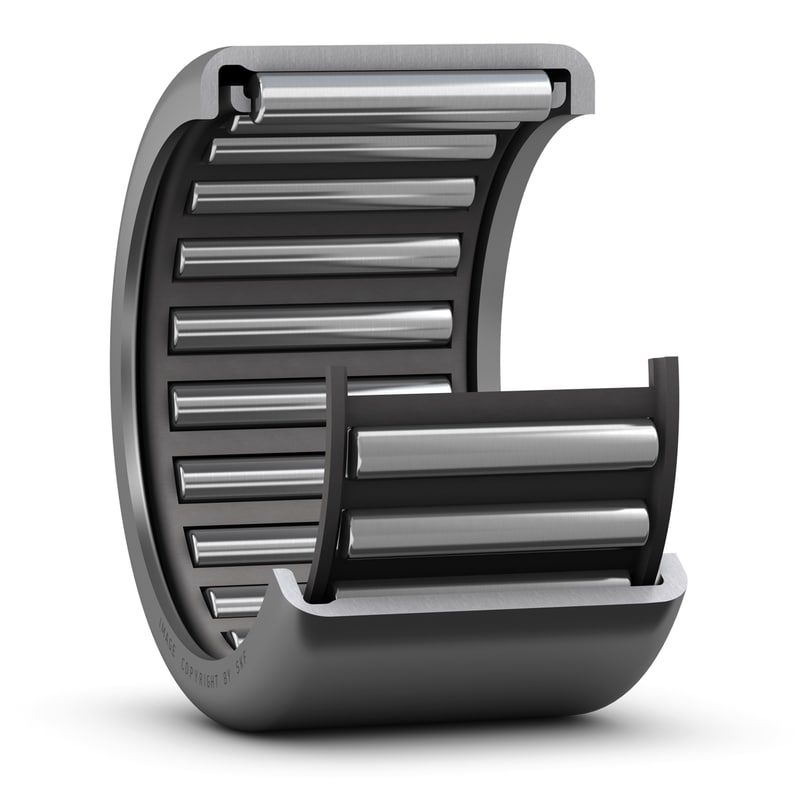

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.
| Fw |
17 mm
|
Diameter under rollers |
|---|---|---|
| D |
23 mm
|
Outside diameter |
| C |
12 mm
|
Width |
| r |
min. 0.8 mm
|
Chamfer dimension drawn cup (outer ring) |
| Basic dynamic load rating | C |
7.65 kN
|
|---|---|---|
| Basic static load rating | C0 |
10.6 kN
|
| Fatigue load limit | Pu |
1.2 kN
|
| Reference speed |
14 000 r/min
|
|
| Limiting speed |
15 000 r/min
|
| Mass bearing |
0.013 kg
|
