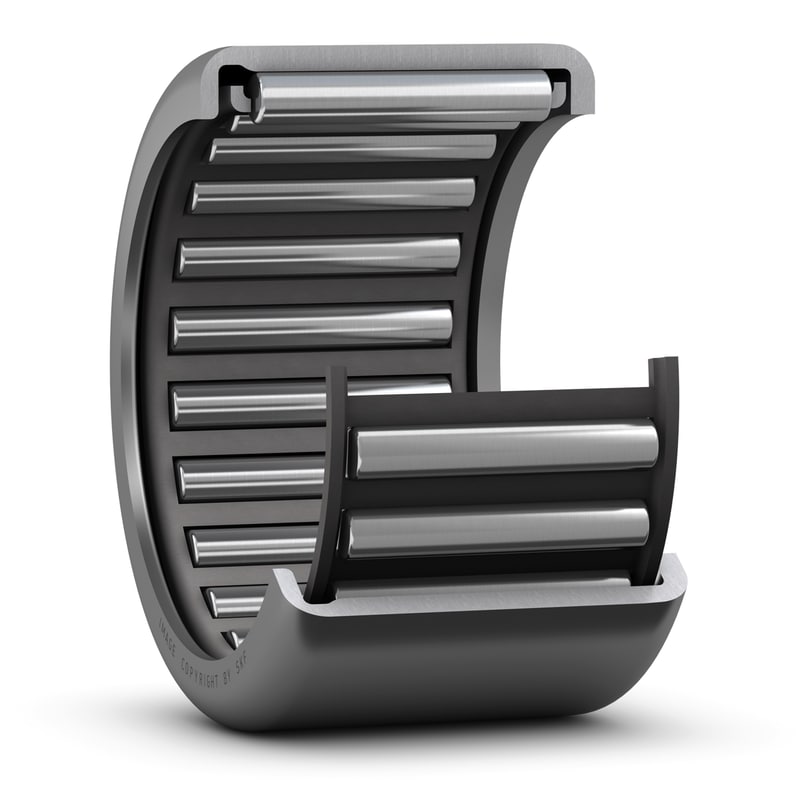

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.
| Fw |
9 mm
|
Diameter under rollers |
|---|---|---|
| D |
13 mm
|
Outside diameter |
| C |
10 mm
|
Width |
| r |
min. 0.4 mm
|
Chamfer dimension drawn cup (outer ring) |
| Basic dynamic load rating | C |
4.13 kN
|
|---|---|---|
| Basic static load rating | C0 |
4.8 kN
|
| Fatigue load limit | Pu |
0.53 kN
|
| Reference speed |
18 000 r/min
|
|
| Limiting speed |
20 000 r/min
|
| Mass bearing |
0.004 kg
|
