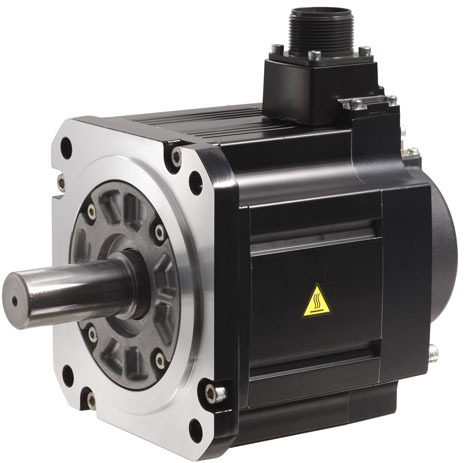

| Series | MELSERVO-JET |
|---|---|
| Type | HG-SNS |
| Rated Capacity (kW) | 1 |
| Rated Torque (Nm) | 4,77 |
| Maximum Torque (Nm) | 14,3 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 11,6 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP67 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
| Width (mm) | 130 |
|---|---|
| Height (mm) | 177,5 |
| Depth (mm) | 187,5 |
| Weight (kg) | 6,2 |
| CE | COMPLIANT |
|---|
| Dangerous Goods Regulations | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
