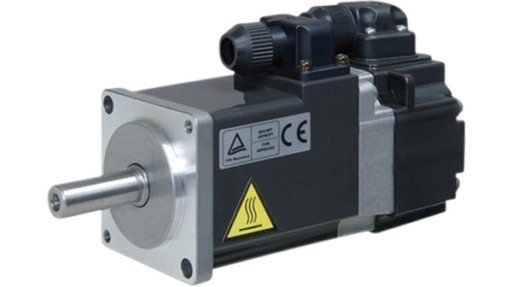

| Series | MELSERVO-JE |
|---|---|
| Type | HG-KN |
| Rated Capacity (kW) | 0,2 |
| Rated Torque (Nm) | 0,64 |
| Maximum Torque (Nm) | 1,9 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 5000 |
| Inertia (kg*cm2) | 0,225 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | 17-BIT |
| Encoder Resolution (p/rev) | 131072 |
| Width (mm) | 60 |
|---|---|
| Height (mm) | 60 |
| Depth (mm) | 106,6 |
| Weight (kg) | 0,91 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Cardboard (g) | 110 |
|---|---|
| Other paper (g) | 36 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 12 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1 |
| Dangerous Goods Regulations | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
