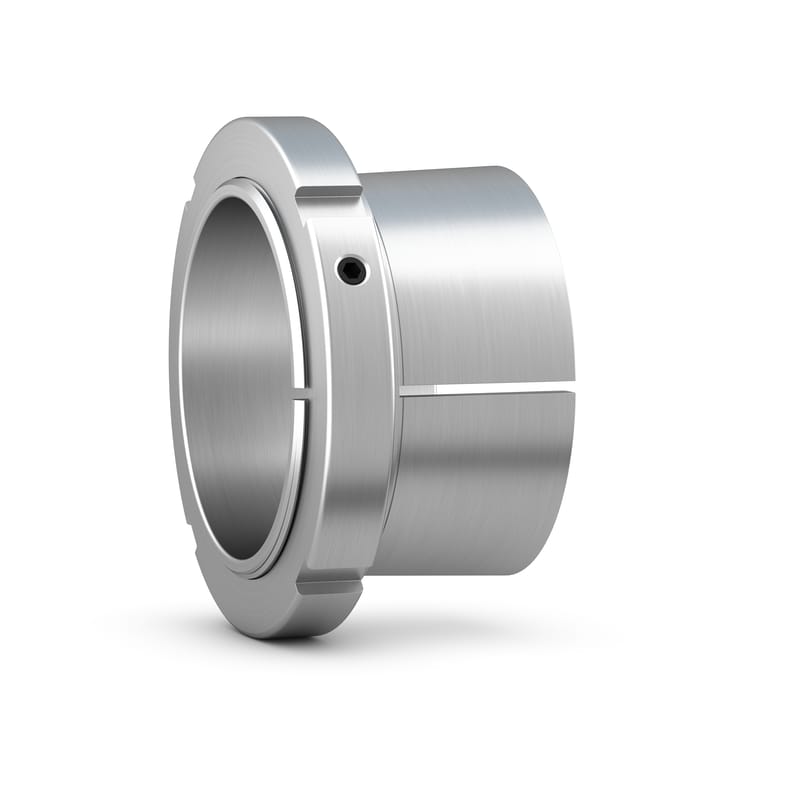

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. The sleeves are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.
| d1 |
50.8 mm
|
Bore diameter |
|---|---|---|
| d |
55 mm
|
Outside diameter small taper |
| d3 |
75 mm
|
Outside diameter lock nut |
| B1 |
45 mm
|
Width |
| B |
14 mm
|
Width lock nut |
| G |
W 55×1/19
|
Thread |
|
1:12
|
External taper |
| Mass adapter sleeve assembly |
0.29 kg
|
