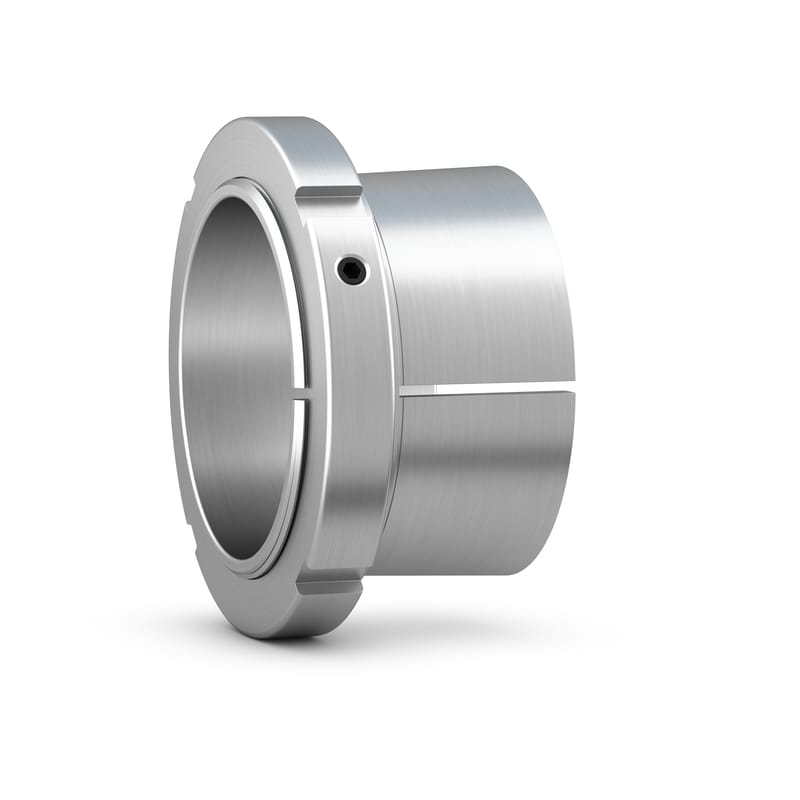

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. The sleeves are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.
| d1 |
87.313 mm
|
Bore diameter |
|---|---|---|
| d |
100 mm
|
Outside diameter small taper |
| d3 |
130 mm
|
Outside diameter lock nut |
| B1 |
71 mm
|
Width |
| B |
21 mm
|
Width lock nut |
| G |
M 100×2
|
Thread |
|
1:12
|
External taper |
| Mass adapter sleeve assembly |
1.75 kg
|
