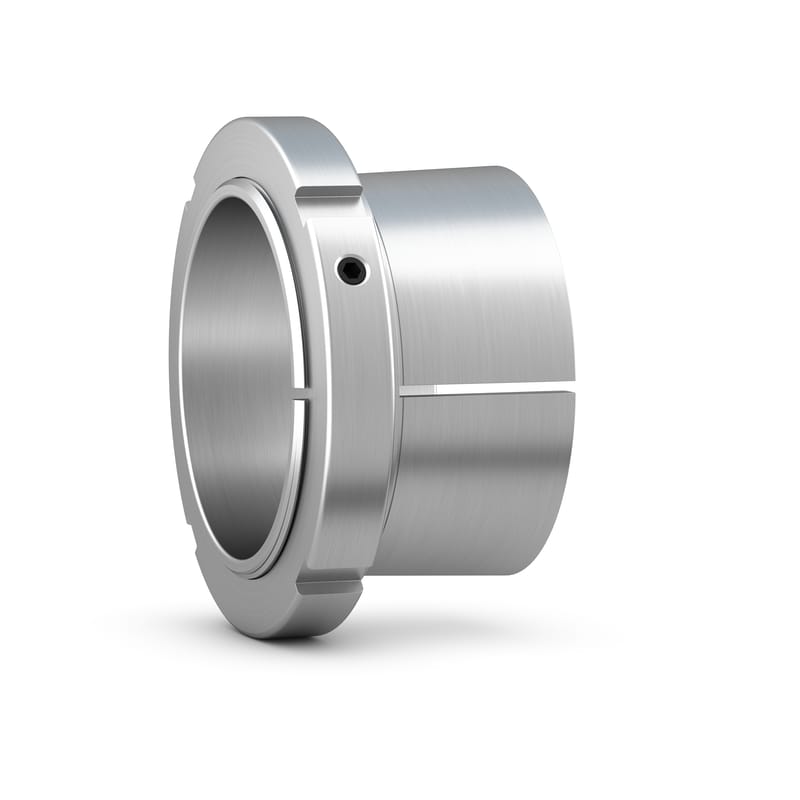

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. The sleeves are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.
| d1 |
150.813 mm
|
Bore diameter |
|---|---|---|
| d |
170 mm
|
Outside diameter small taper |
| d3 |
220 mm
|
Outside diameter lock nut |
| B1 |
122 mm
|
Width |
| B |
33 mm
|
Width lock nut |
| G |
M 170×3
|
Thread |
|
1:12
|
External taper |
| Mass adapter sleeve assembly |
7.9 kg
|
