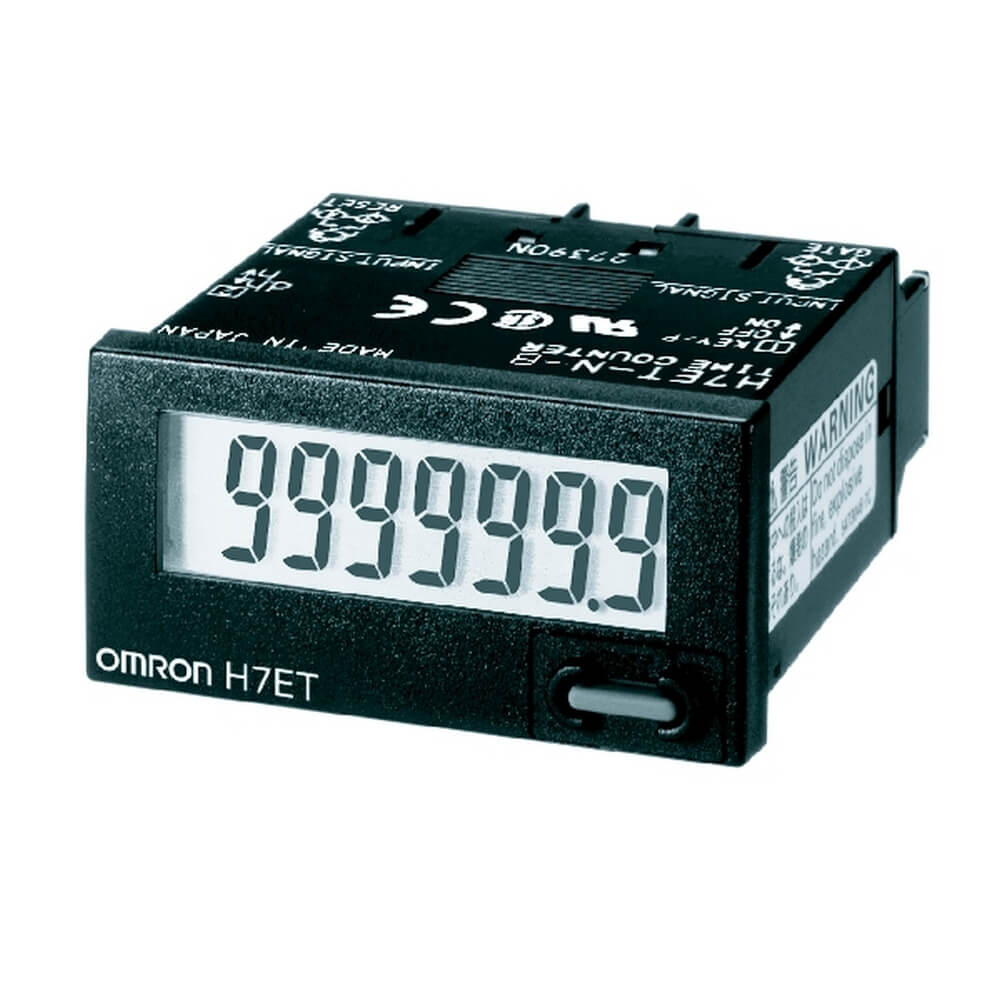

Time counter, 1/32DIN (48 x 24 mm), self-powered, LCD, 7-digit, 999999.9h / 3999d23.9h, VAC/DC input, black case
| Type | Totalising |
| Size | 1/32 DIN (48 x 24 mm) |
| Counting functions | Time count |
| Counting range | 0 – 999999.9 h |
| LCD backlight | Without backlight |
| Number of digits | 7 |
| Body color | Black |
| Installation type | On-panel |
| Terminal | Screw |
| Inputs | AC voltage, DC voltage |
| Product Width (unpacked) | 48 mm |
| Product Height (unpacked) | 24 mm |
| Product Depth (unpacked) | 48.5 mm |
 |
Y92F-35 | Flush panel mounting adapter for H7E |
|
 |
Y92F-75 | Flush mounting adapter for H7E, panel cut-out 45.3 x 26 mm |
|
 |
Y92F-76 | Flush mounting adapter for H7E, panel cut-out 52.5×27.5mm |
|
Datasheet
EN PDF
Time counter, 1/32DIN (48 x 24 mm), self-powered, LCD, 7-digit, 999h59m59s / 9999h59.9m, VDC input, grey case
Time counter, 1/32DIN (48 x 24 mm), self-powered, LCD, 7-digit, 999h59m59s / 9999h59.9m, no-V input, grey case
Time counter, 1/32DIN (48 x 24 mm), self-powered, LCD, 7-digit, 999999.9h / 3999d23.9h, no-V input, grey case
Time counter, 1/32DIN (48 x 24 mm), self-powered, LCD, 7-digit, 999999.9h / 3999d23.9h, VDC input, black case
