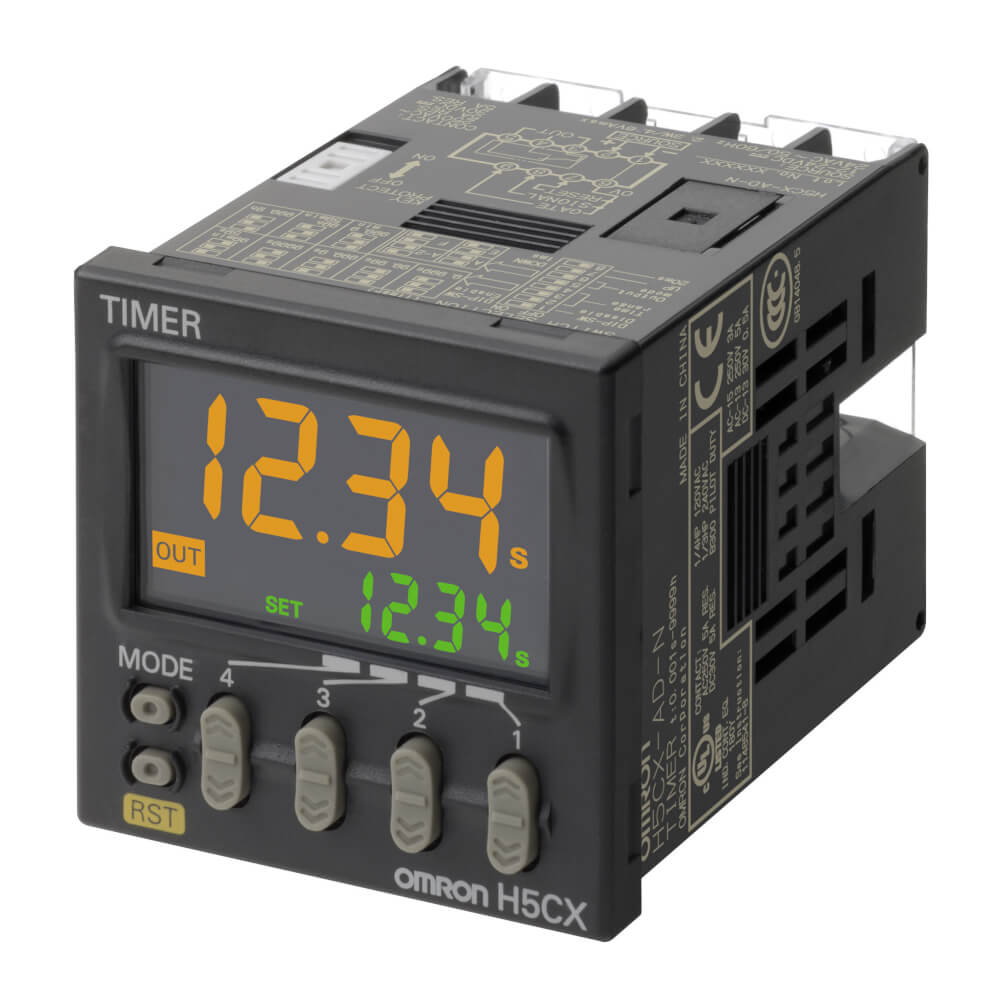

Timer, plug-in, 8-pin, DIN 48×48 mm, economy model, Contact output (time-limit SPDT + instantaneous SPDT), None NPN inputs, 100 to 240 VAC supply
| Type | Digital |
| Installation type | DIN Rail, On-panel, Socket |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal | Plug-in |
| Output type | Relay |
| Contact description | 2 x SPDT |
| Time range | 0.001 s – 9999 h |
| Supply voltage AC | 100-240 V |
| Number of pin contact | 8 |
| Features | Instantaneous contact |
 |
P3G-08 | Socket, back-connecting, 8-pin, screw terminals |
|
 |
Y92A-48 | Protective cover for DIN48x48mm device, hard plastic (shallow) |
|
 |
Y92A-48F1 | Protective cover for DIN 48 x 48 mm timer and counter, soft plastic |
|
 |
Y92F-30 | Flush panel mounting adapter for DIN 48×48 mm device |
|
 |
Y92F-45 | Panel adaptor, 48 x 48 device into 67 x 67 hole |
|
 |
Y92S-29 | Waterproof packing for use with 48x48mm devices and Y92F30 flush mounting adapter |
|
Datasheet
EN PDF
Timer, plug-in, 11-pin, DIN48x48mm, IP66, 4 preset & 4 actual time digits, multi range 0.01s to 9999h (10 ranges), multifunction, NPN/PNP/No voltage input selectable, SPDT 5A relay output, 100-240 VAC supply
Timer, plug-in, 8-pin, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), economy model, NPN/PNP/No voltage input selectable, SPDT 5 A relay output, 100-240 VAC supply
Timer, plug-in, 11-pin, 1/16DIN (48 x 48mm), IP66, 4 preset & 4 actual time digits, multi range 0.01s to 9999h (10 ranges), multifunction, NPN/PNP/No voltage input selectable, 100mA 30 VDC NPN transistor output, 12-24 VDC/24 VAC supply
Timer, plug-in, 11-pin, 1/16DIN (48 x 48mm), IP66, 4 preset & 4 actual time digits, multi range 0.01s to 9999h (10 ranges), multifunction, NPN/PNP/No voltage input selectable, SPDT 5 A relay output, 12-24 VDC/24 VAC supply
