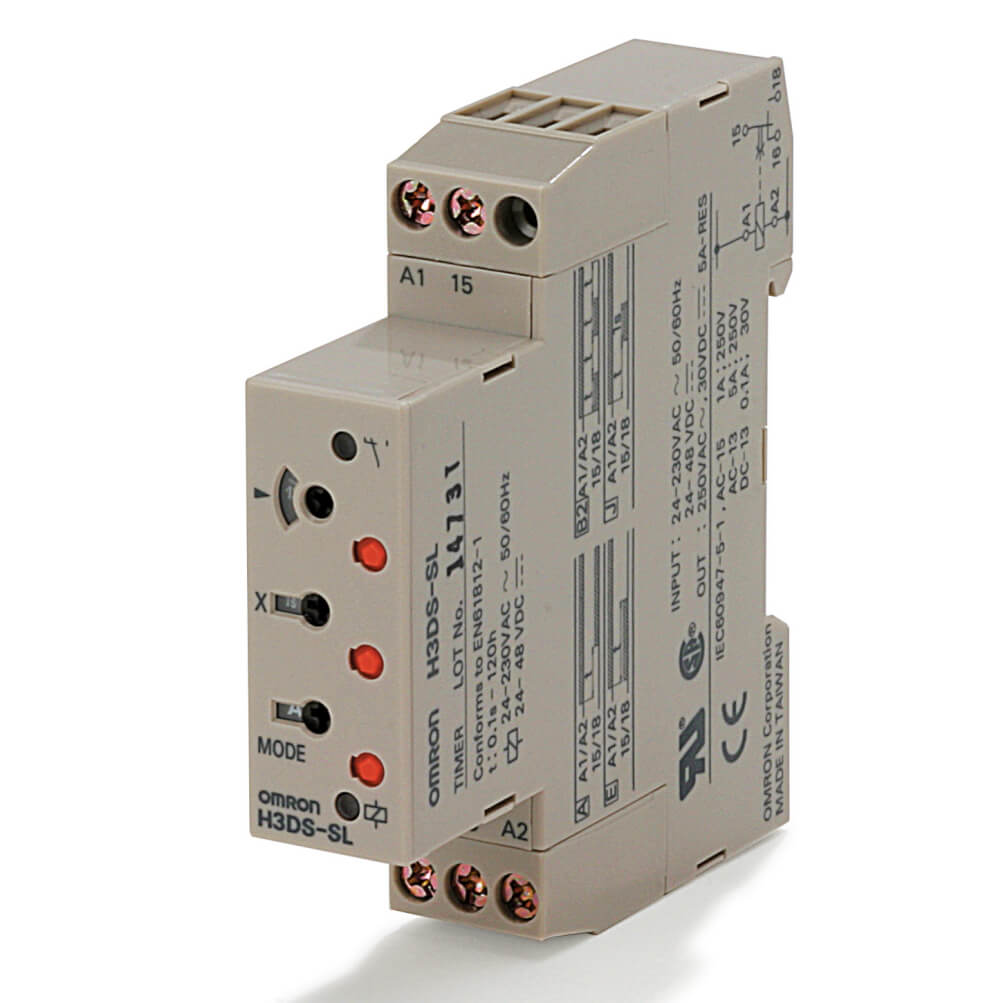

Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on/flicker-on/interval/one-shot-delay, 0.1 s-120 h, SPDT, 5 A, ‘Smart Dial’ lockable settings
| Type | Analog |
| Installation type | DIN Rail |
| Functions | Multi-functional |
| Size | 17.5 mm |
| Terminal | Screw |
| Operating mode | Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start), One-shot Output (Power ON Start) |
| Output type | Relay |
| Contact description | SPDT |
| Time range | 0.1 s – 120 h |
| Supply voltage AC | 24-230 V |
| Supply voltage DC | 24-48 V |
 |
Y92S-38 | Adjustment and locking tool for H3DS |
|
Datasheet
EN PDF
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, twin on & off-delay, 0.1 s-12 h, SPDT, 5 A, lockable settings, screwless terminals
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings, no-input available, A single operating mode, screw terminal type
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, multifunction, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, star-delta-delay, 1-120 s, DPST-NO, 5 A, lockable settings, screw terminal type
