Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), power off-delay, 0.05-12s, DPDT, 5 A
| Type | Analog |
| Installation type | Socket |
| Functions | Power OFF-delay |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal | Plug-in |
| Operating mode | OFF Delay (Power) |
| Output type | Relay |
| Contact description | DPDT |
| Time range | 0.05 s – 12 s |
| Supply voltage AC | 100-120 V |
| Number of pin contact | 8 |
 |
P3G-08 | Socket, back-connecting, 8-pin, screw terminals |
|
 |
Y92A-48B | Protective cover for DIN 48×48 mm device, hard plastic |
|
 |
Y92F-30 | Flush panel mounting adapter for DIN 48×48 mm device |
|
Datasheet
EN PDF
Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), star-delta-delay, 0.5-120s, SPST-NO instantaneous, SPST-NO time-limit , 5 A, 100-120 VAC
Timer, plug-in, 8-pin, 1/16DIN (48 x 48mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.1s-600h, DPDT, 5 A
Timer, plug-in, 11-pin, 1/16DIN (48 x 48 mm),voltage input, multifunction, 0.05s-300h, DPDT, 5 A

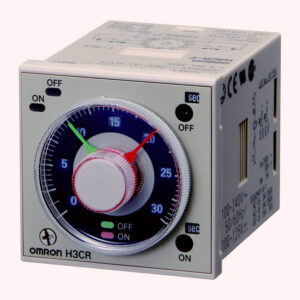

Timer, plug-in, 11-pin, 1/16DIN (48 x 48 mm), twin on & off-delay, flicker ON start, 0.05s-300h, DPDT, 5 A, 24-48VAC, 12-48VDC
